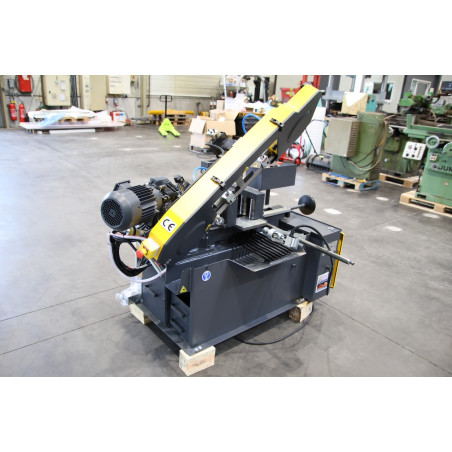

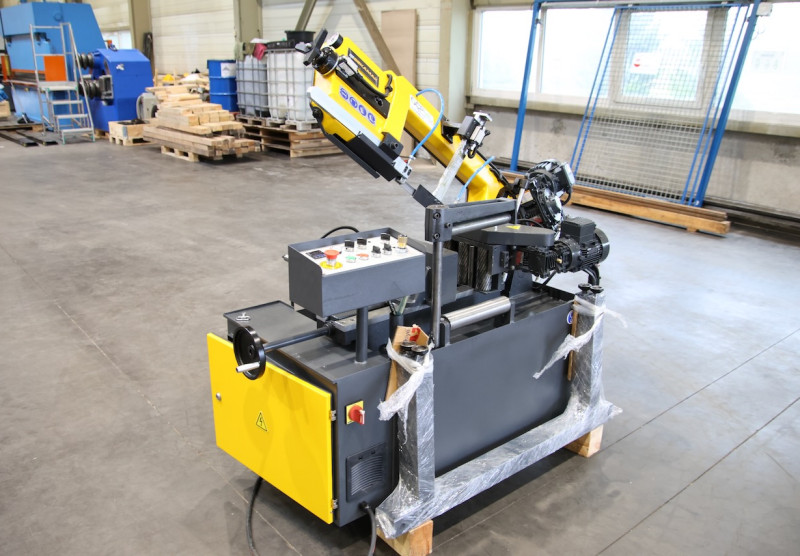

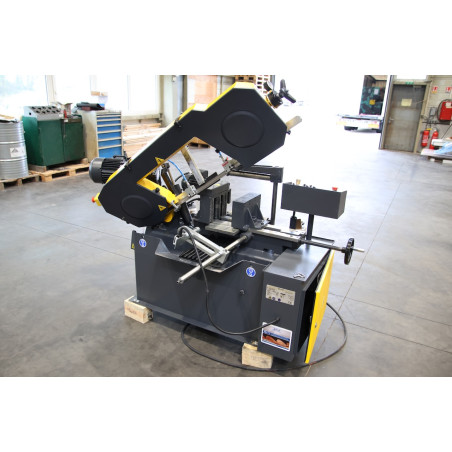

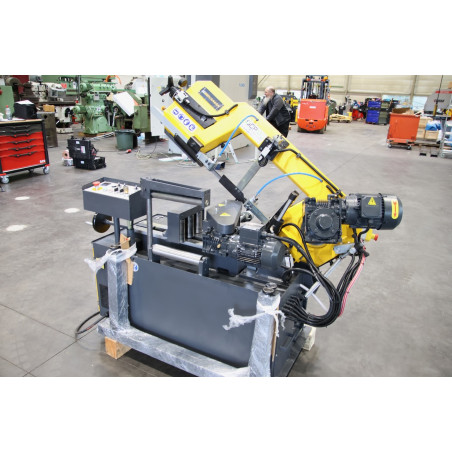

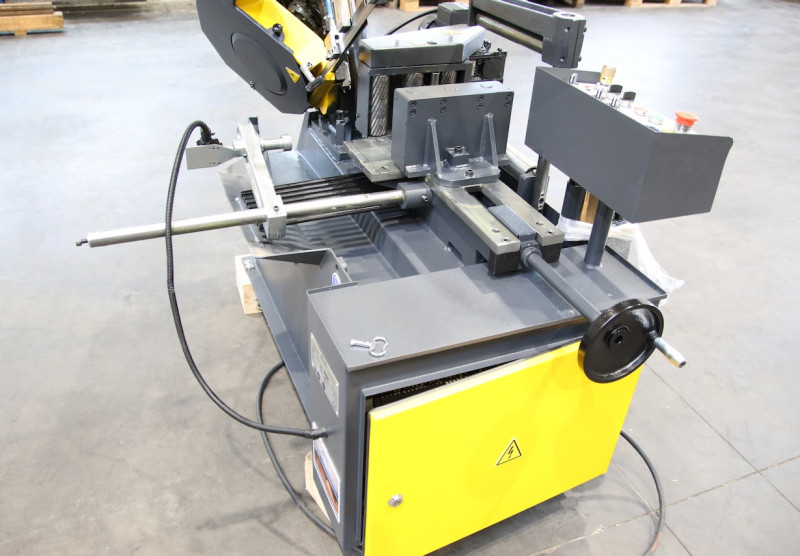

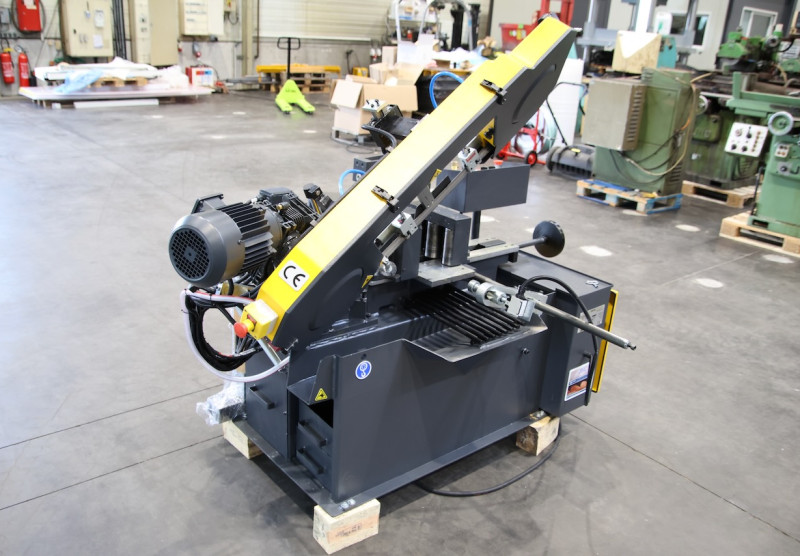

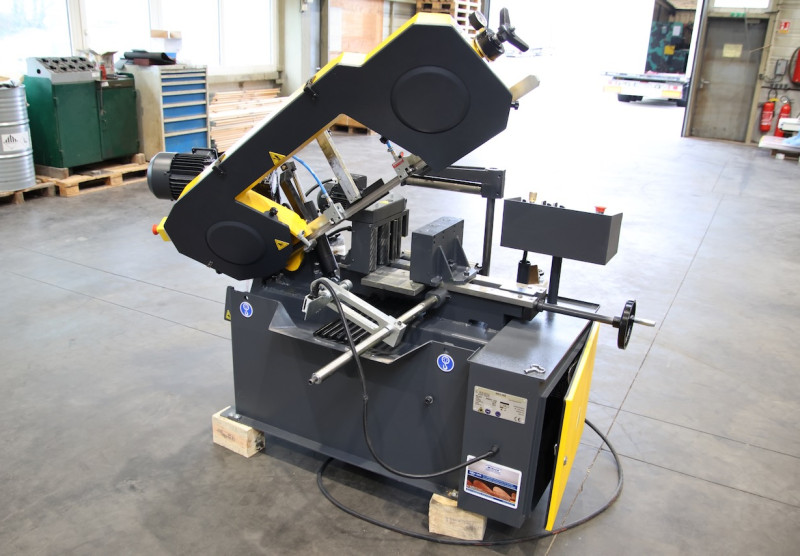

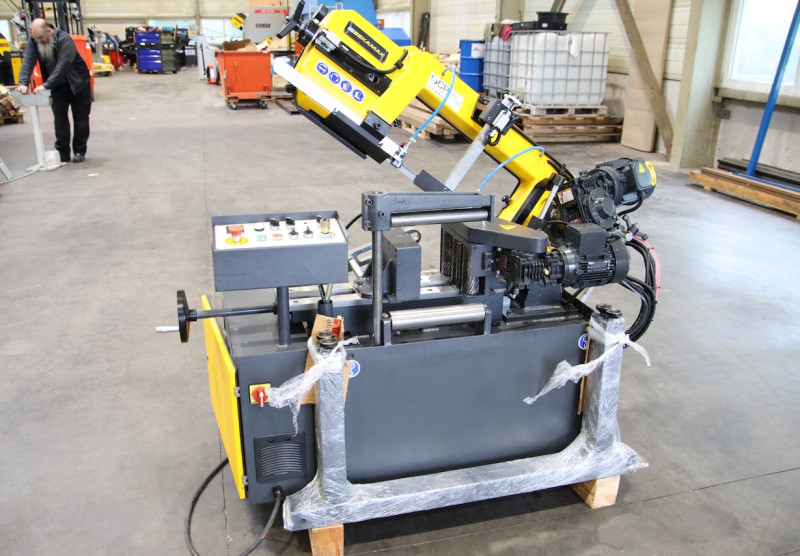

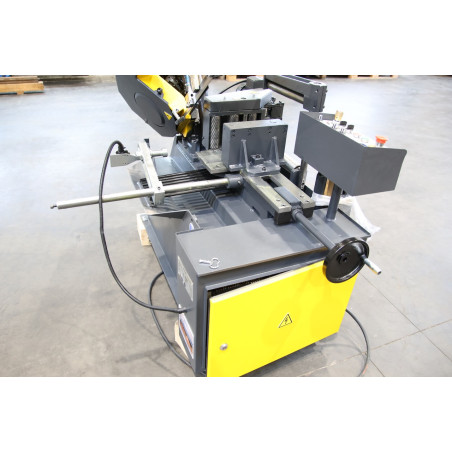

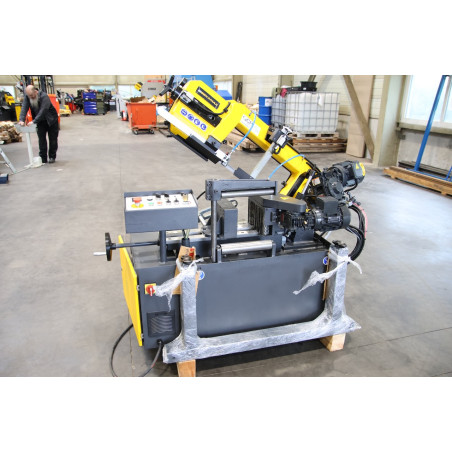

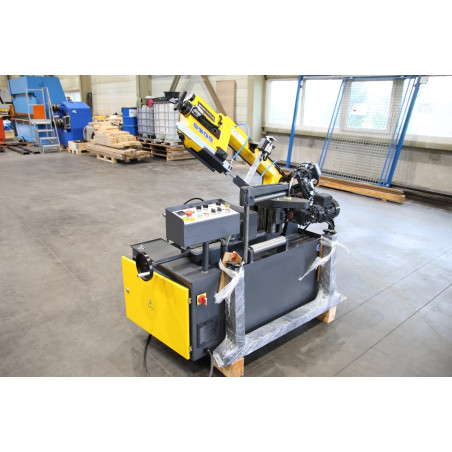

BEKAMAK BMSO 230 automatic band saw
Data sheet
 |
 |
 |
 |
| 0° | 230 mm | 240 x 230 mm | 230 |
Main drive motor 1.0 - 1.3 kW
0.37 kW hydraulic motor
Cooling pump 0.12 kW
0.25 kW feed motor
Blade speed 15 - 120 m/min.
Blade dimensions 2730 x 27 x 0.9 mm
Working height 590 mm
Weight 530 kg
Length 1400 mm
Width 1100 mm
Height 1160 mm

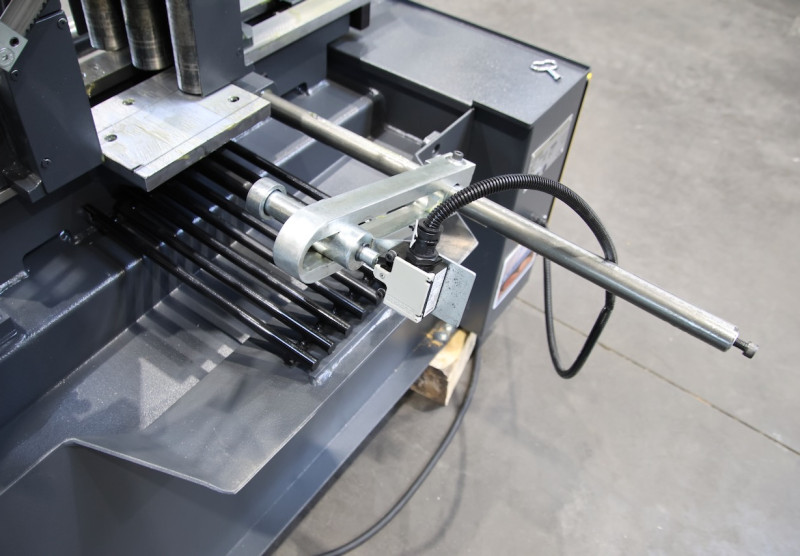

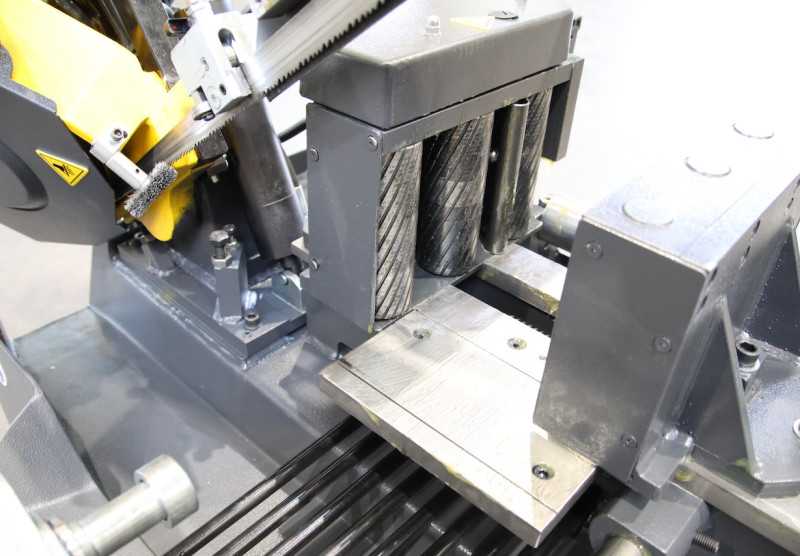

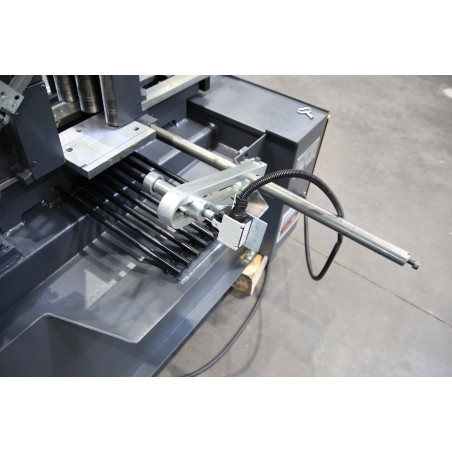

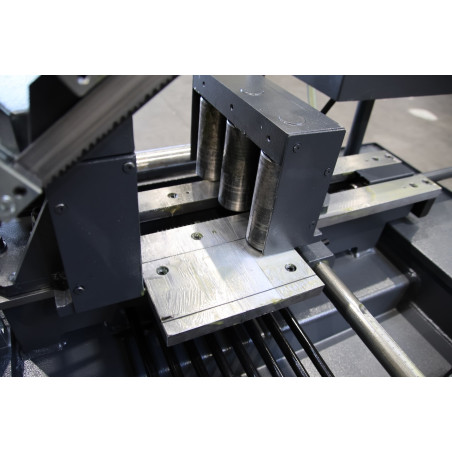

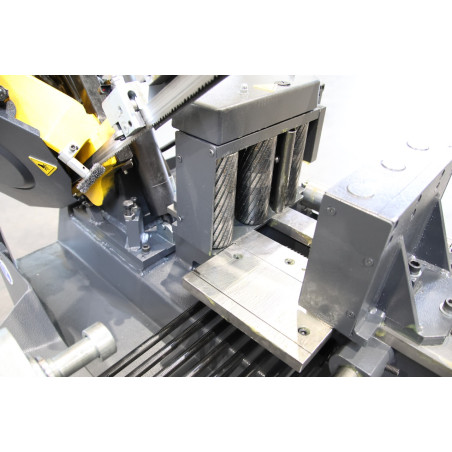

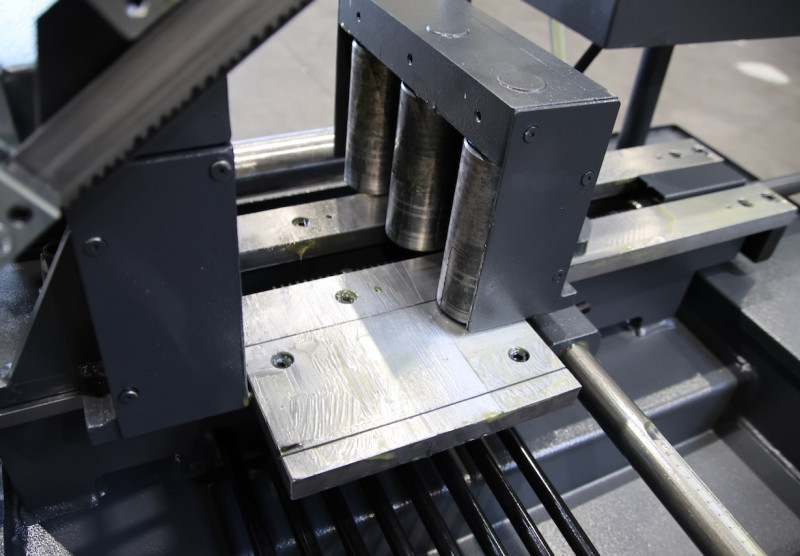

Fully automatic band saws for cutting solid bars, tubes and sections of steel, light cast iron and non-ferrous materials. 90-degree cut only. Made entirely of steel. Oil-bath reduction gearing and carbide shoes and rollers in the blade guides. The front jaw consists of several hardened rollers driven by an electric motor via a worm and wheel. The rear vise consists of several freely rotating rollers. A limit switch mounted on top of the vise stops the machine when the block is exhausted. Once the workpiece is clamped between the rollers, no further clamping is necessary. The workpiece is fed through the vise to the bar stop which contains a micro switch controlling the bar feed motor. A parts counter monitors the number of cuts. The machines stop automatically in the event of blade breakage. The machines are equipped with a removable coolant tank incorporating a submersible electric pump that supplies coolant to both guide assemblies. A bi-metal saw blade and a 1.2-meter infeed roller table are supplied as standard.
Features
Please note: The information on this page has been obtained to the best of our ability and belief, and from manufacturers wherever possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or constitute conditions of contract. We advise you to check all the vital details.
