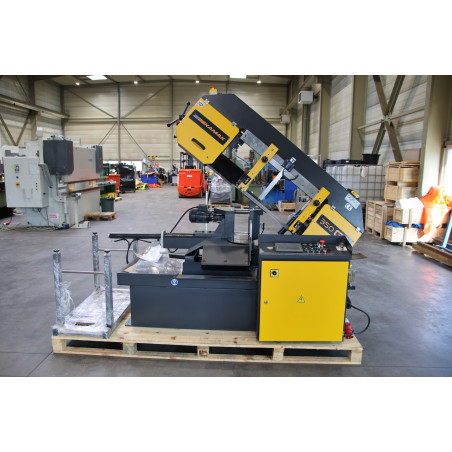

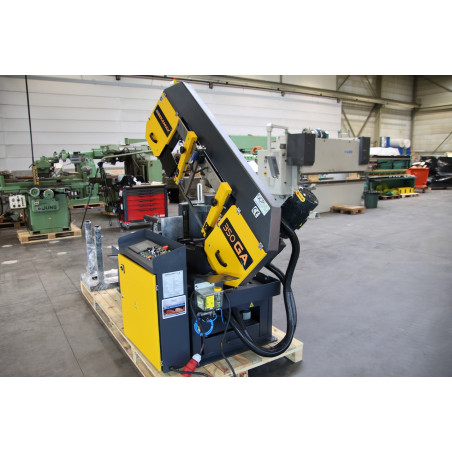

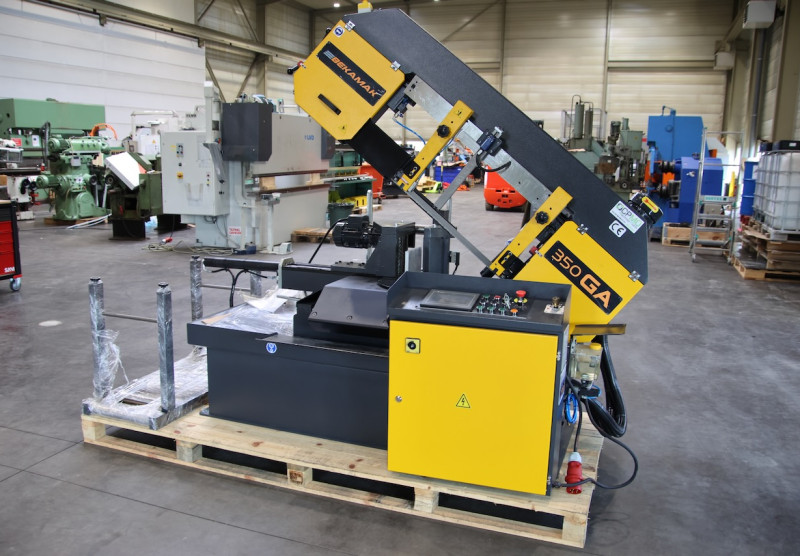

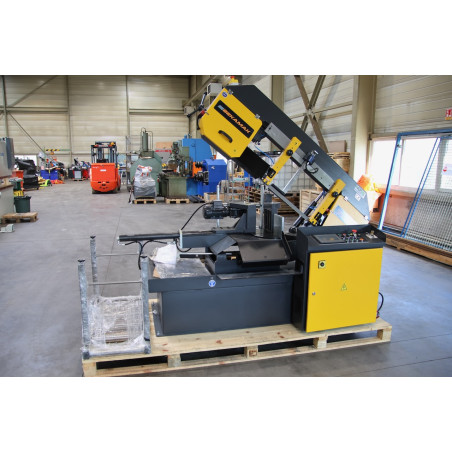

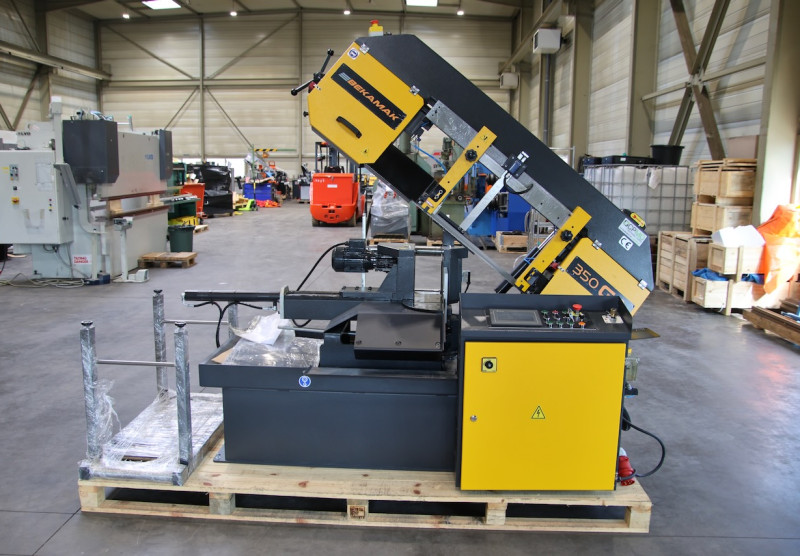

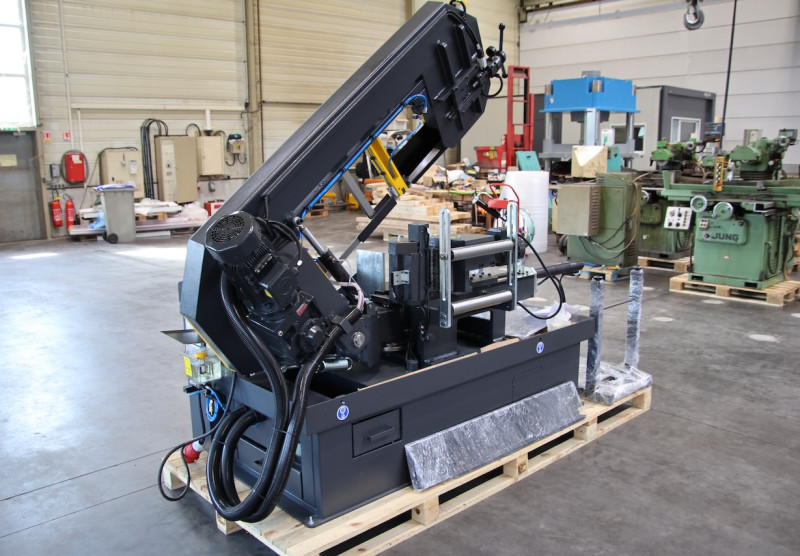

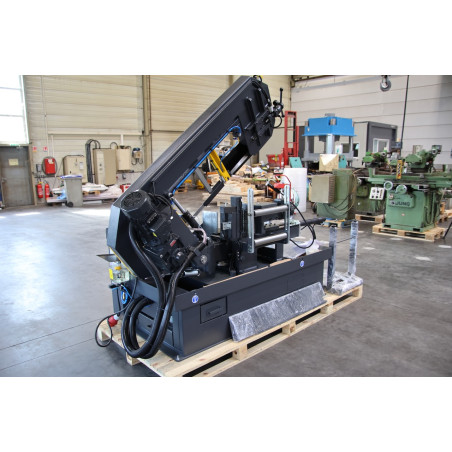

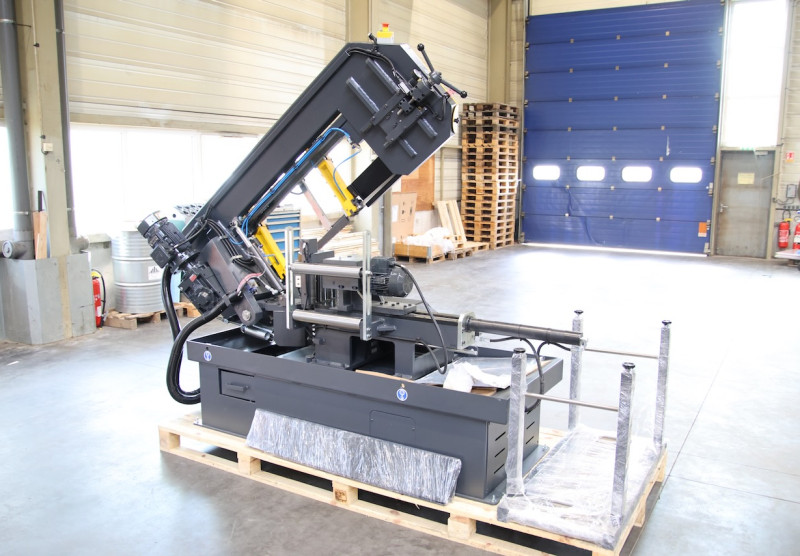

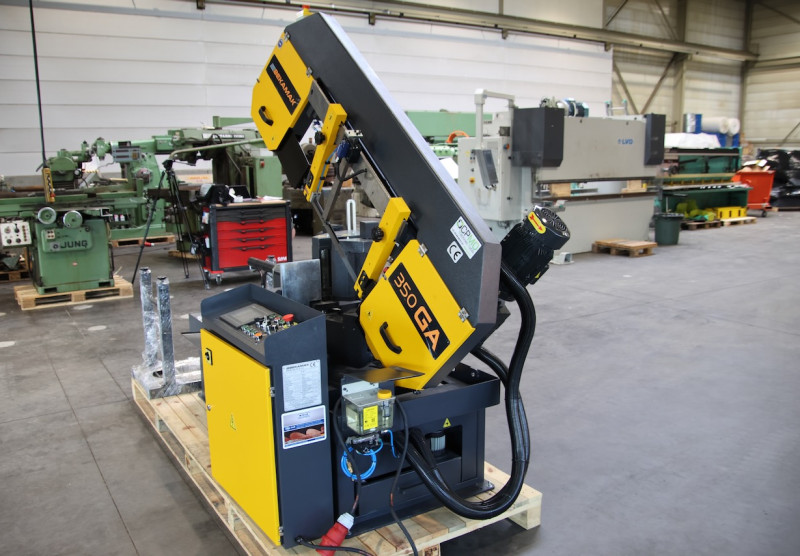

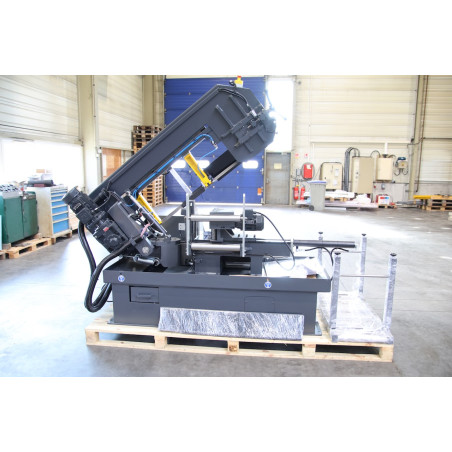

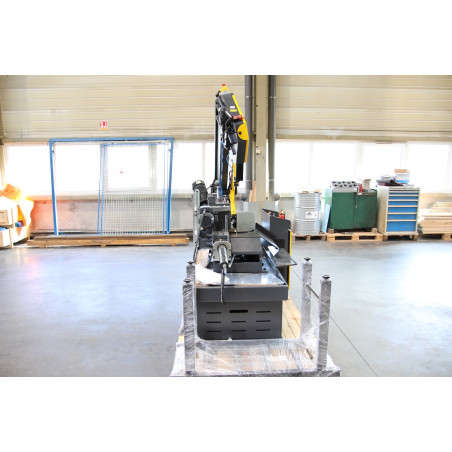

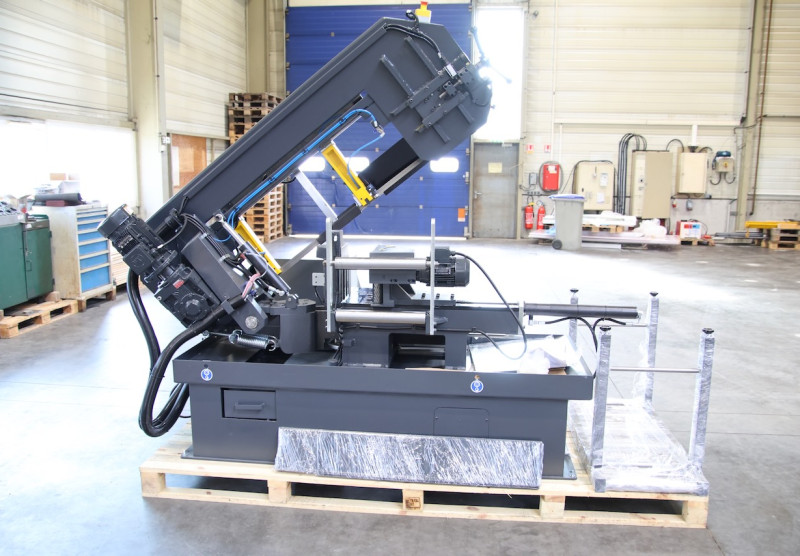

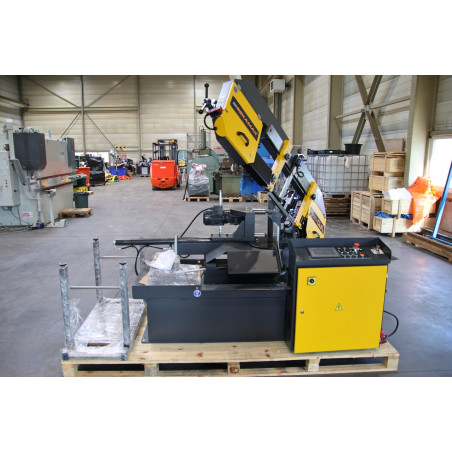

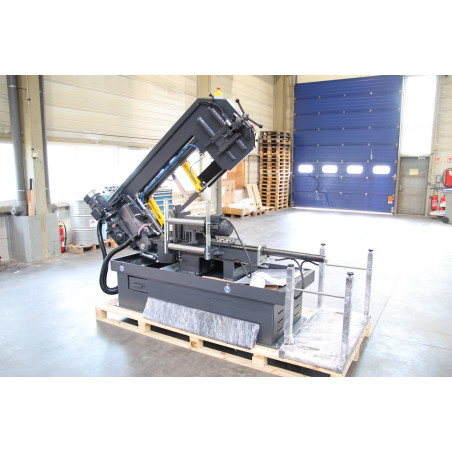

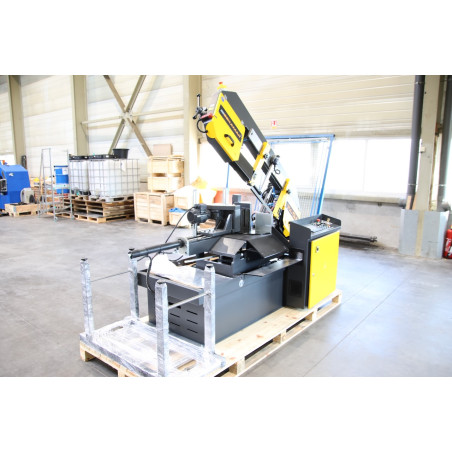

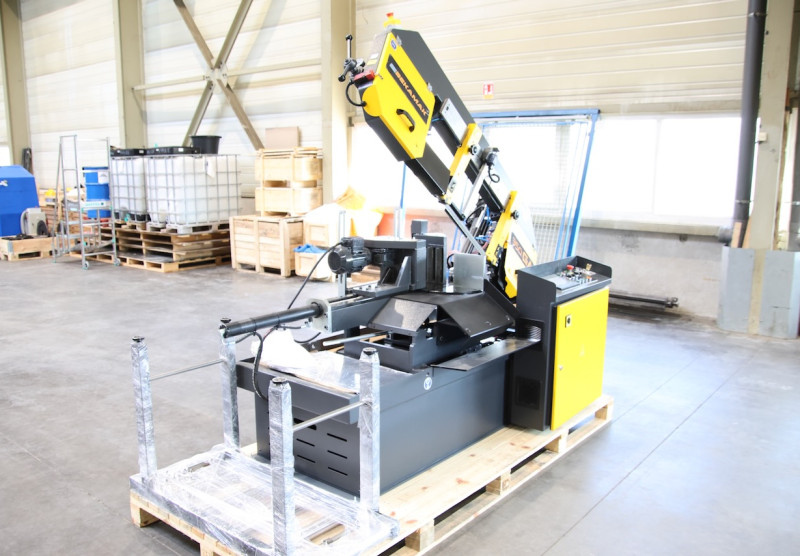

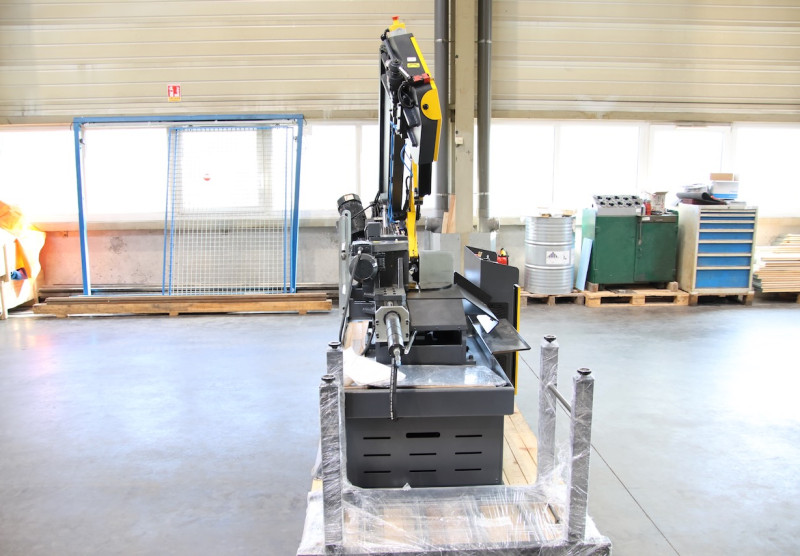

BEKAMAK BMSO 350 GA CN band saw
Data sheet
 |
 |
 |
 |
| 0° | 350 mm | 400 x 350 mm | 350 mm |
| +30° | 320 mm | 400 x 230 mm | 350 mm |
| +45° | 320 mm | 260 x 350 mm | 280 mm |
Main drive motor 2.2 kW
0.37 kW hydraulic motor
Cooling pump 0.12 kW
0.25 kW feed motor
Blade speed 15-120 m/min
Blade dimensions 4160 x 34 x 1.1 mm
Working height 760 mm
Weight 1050 kg
Length 2450 mm
Width 920 mm
Height 2020 mm
Features
Please note: The information on this page has been obtained to the best of our ability and belief, and from manufacturers wherever possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or constitute conditions of contract. We advise you to check all the vital details.
Machine selection
Interested in product
Tell us your interest in this product and we will contact you for more details.

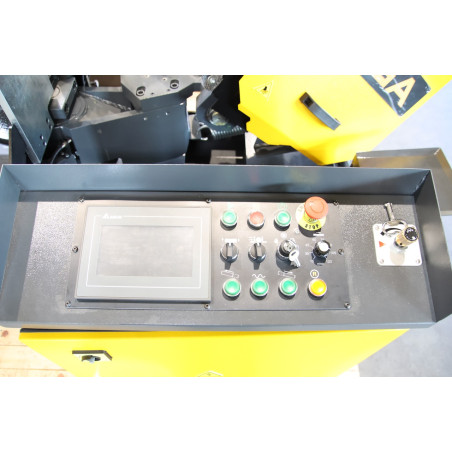

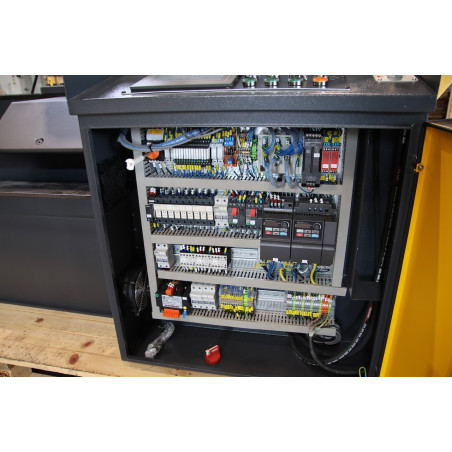

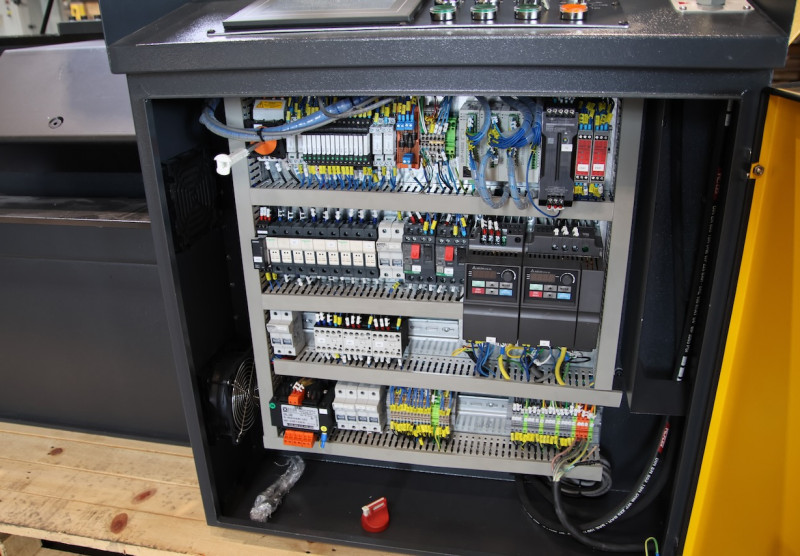

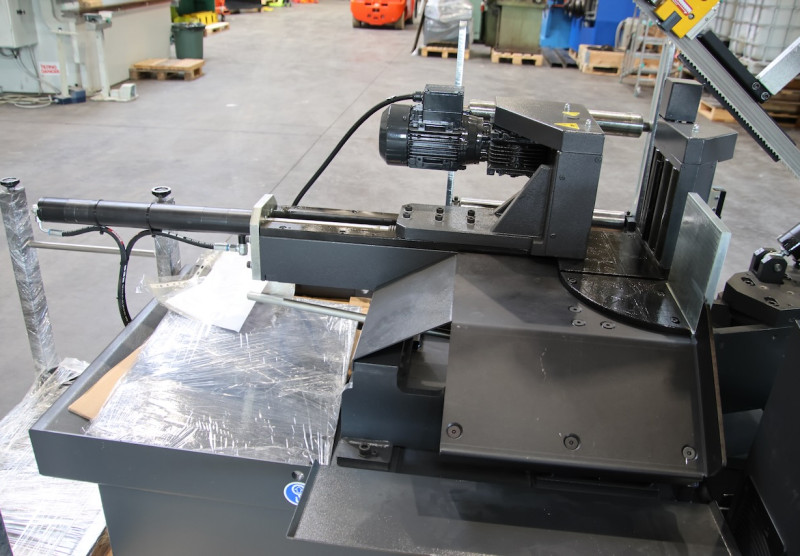

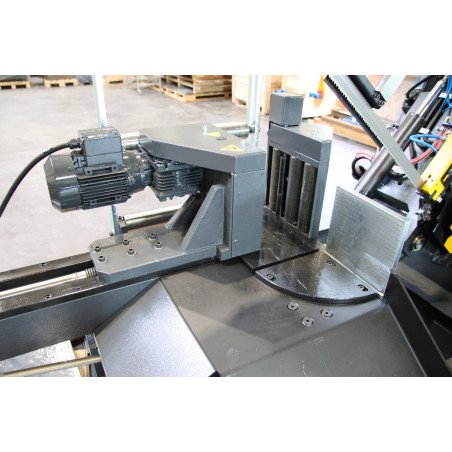

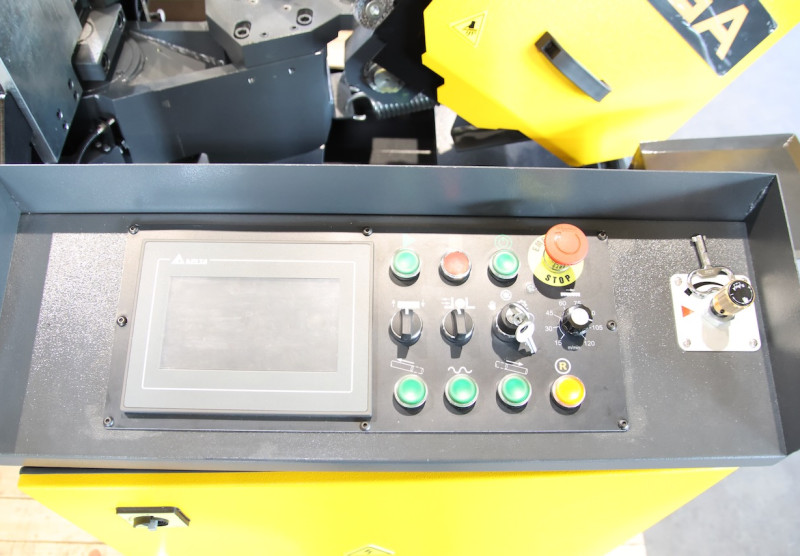

Our BMSO 350 GA model is an articulated band saw, equipped with a PLC and HMI, fully automatic and independent of the support point. Our machine allows for straight and angled cuts on solid and tubular materials, and can cut in the desired quantity and length. The machine performs the material feeding process with encoder precision thanks to the rollers of the hydraulically closing vice jaws. The cutting process is carried out by entering the desired cutting list through the easy-to-use user interface.
