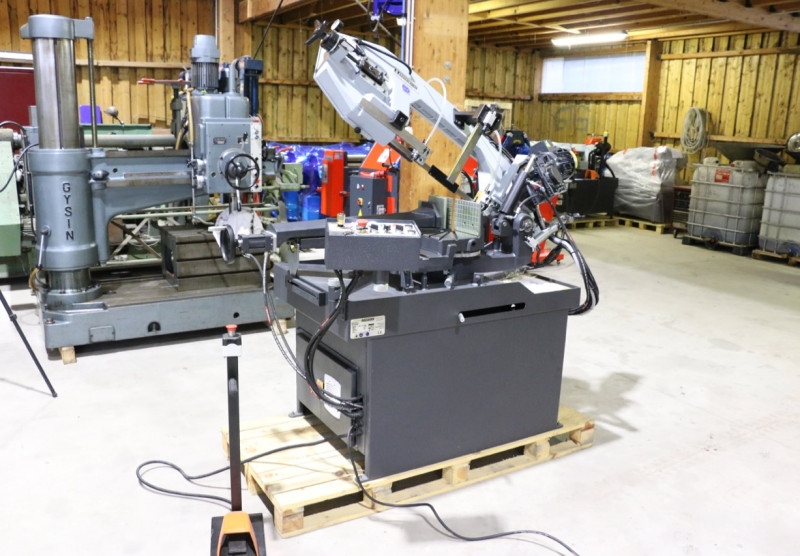

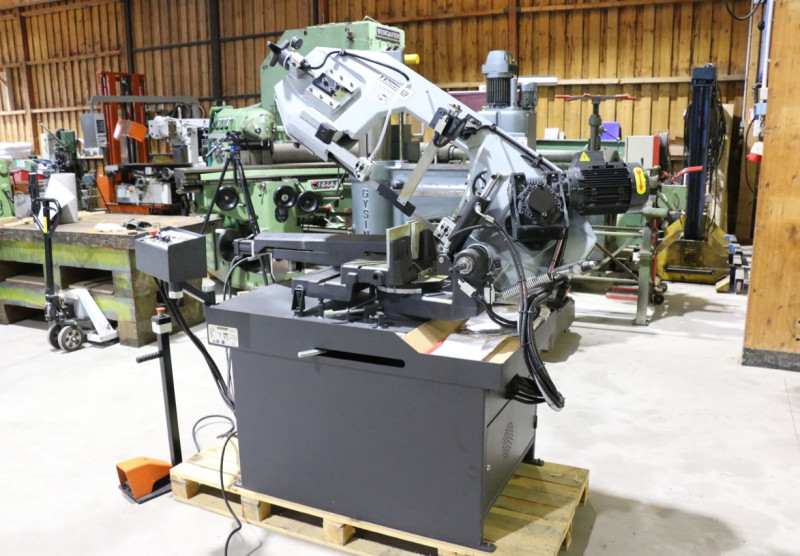

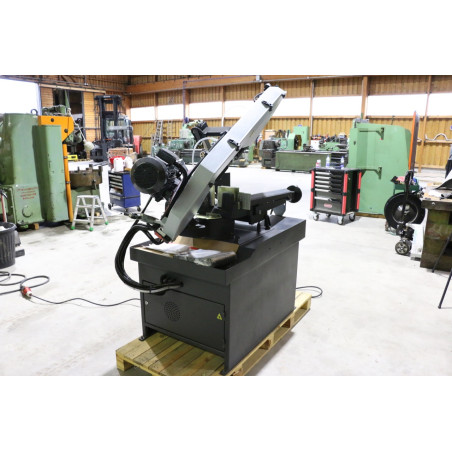

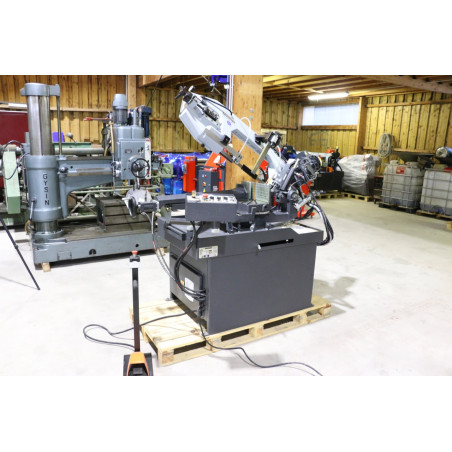

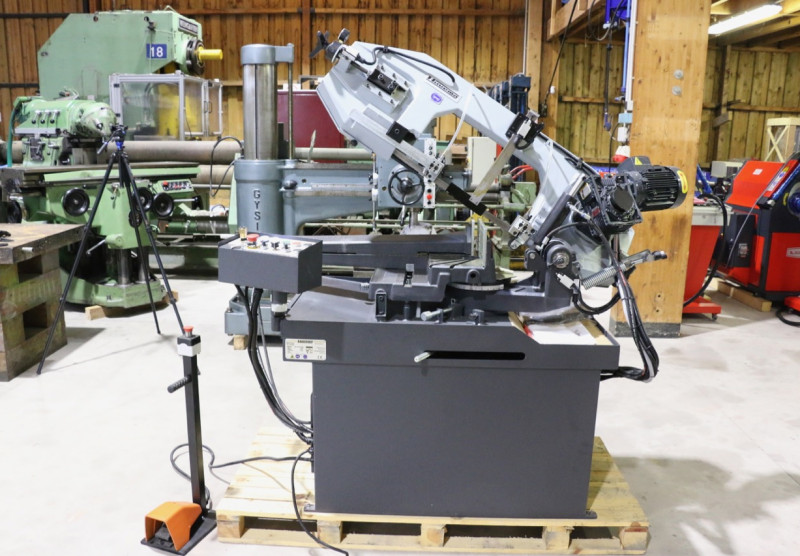

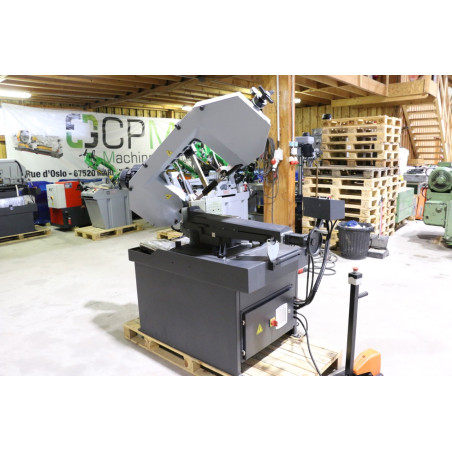

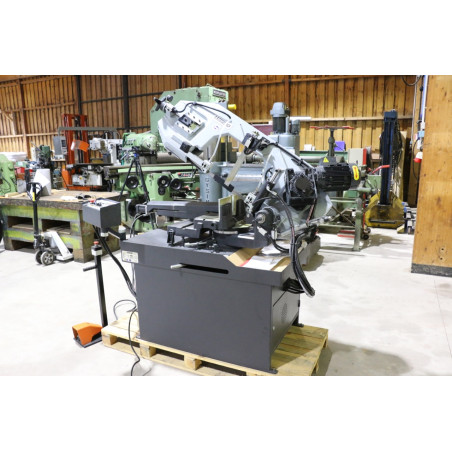

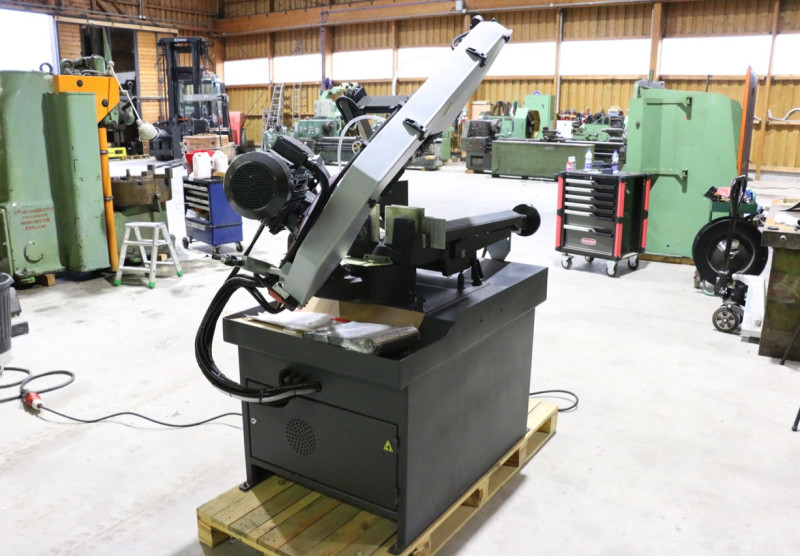

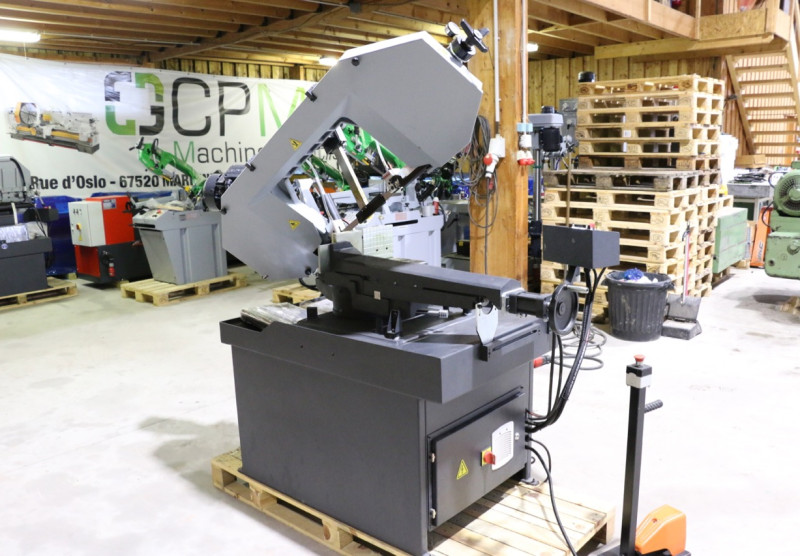

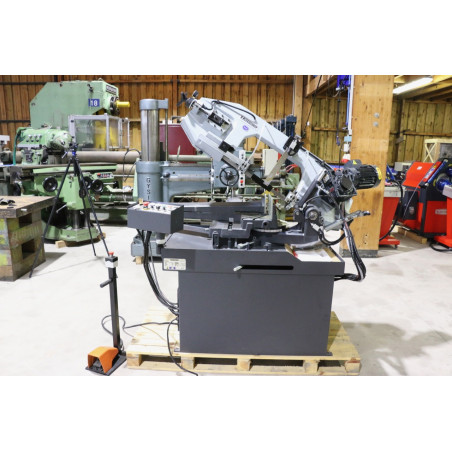

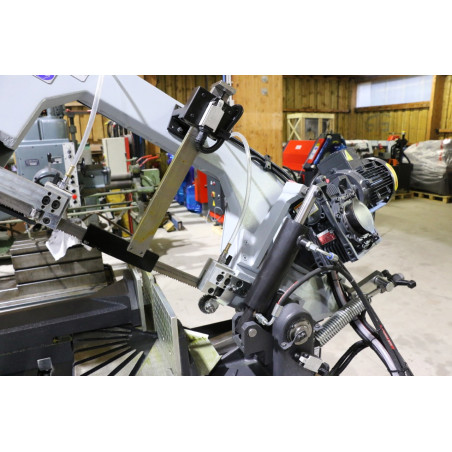

BEKAMAK BMSY-270DGH semi-automatic metal band saw
Data sheet
BEKAMAK BMSY-270DGH semi-automatic metal band saw

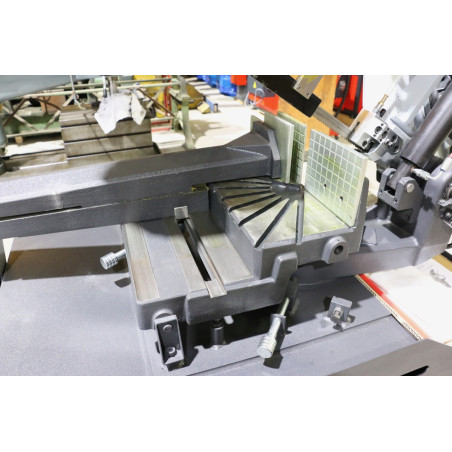

Left and right bias cut
Top Dead Center Sensor
Saw blade dimensions 3160 x 27 x 0.9 mm
Rectangular 45° sawing capacity R-180 x 180, L-240 x 160 mm
45° round sawing capacity R-210, L-240 mm
45° square sawing capacity R-180, L-240 mm
Rectangular 60° sawing capacity 150 mm
Sawing capacity at 60° round 160 mm
Sawing capacity at 60° square 150 mm
Rectangular 90° sawing capacity 350 x 220 mm
90° round sawing capacity 270 mm
90° square sawing capacity 260 mm
Cutting speed 20 - 100 m/min
Engine power 1.5 kW
Net weight 430 kg
Voltage 400 V
Object height 935 mm
Machine dimensions 1730 x 770 x 1460 mm
Features
Please note: The information on this page has been obtained to the best of our ability and belief, and from manufacturers wherever possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or constitute conditions of contract. We advise you to check all the vital details.
