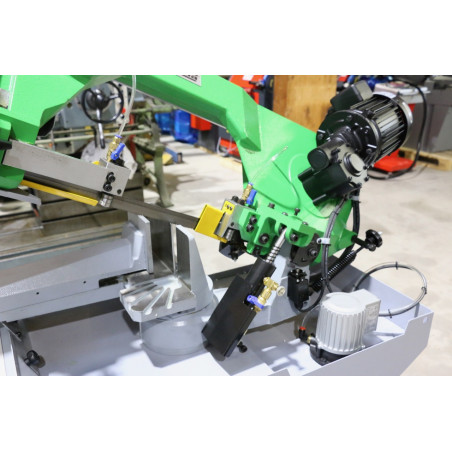

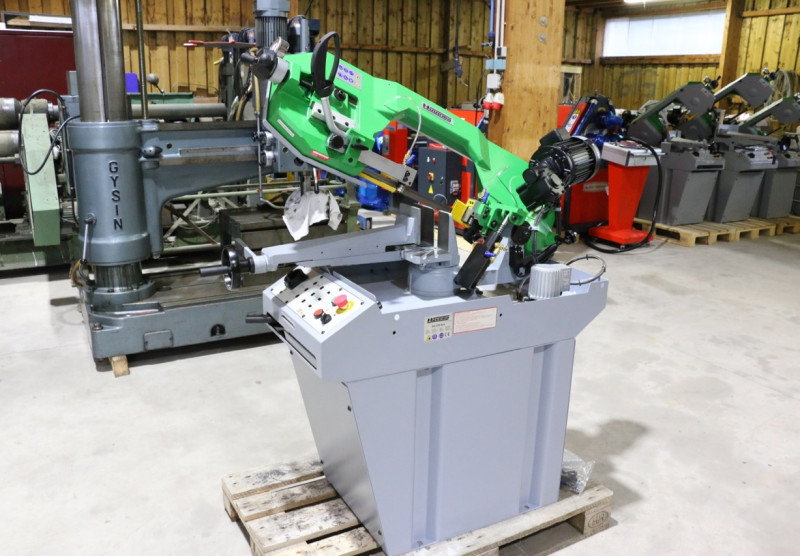

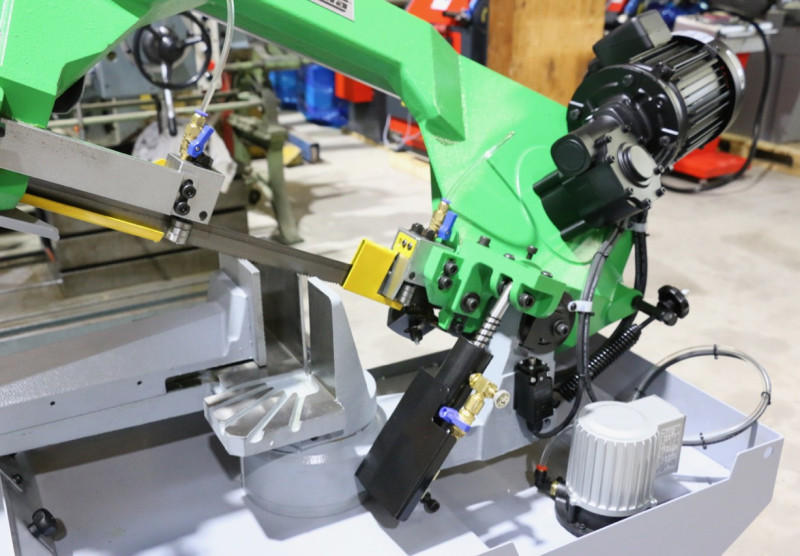

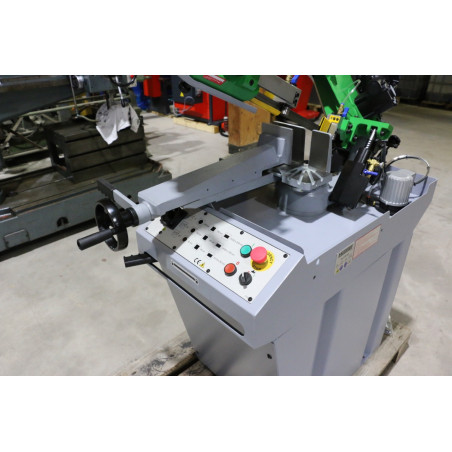

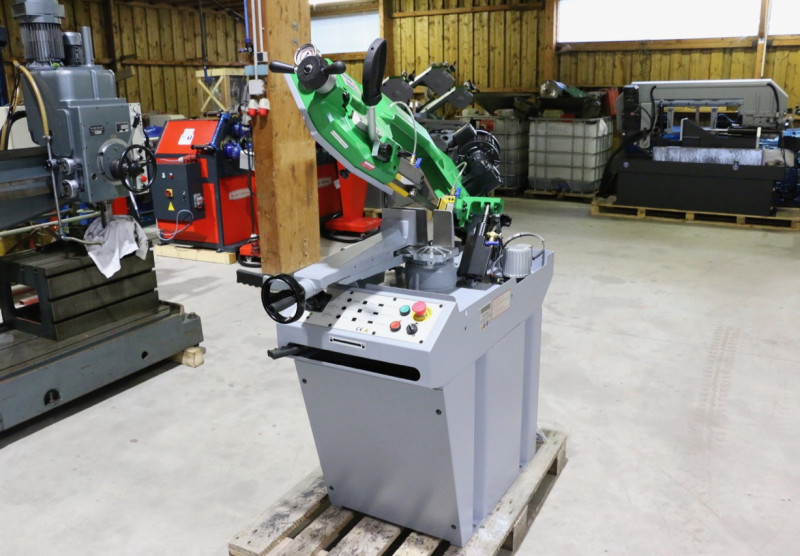

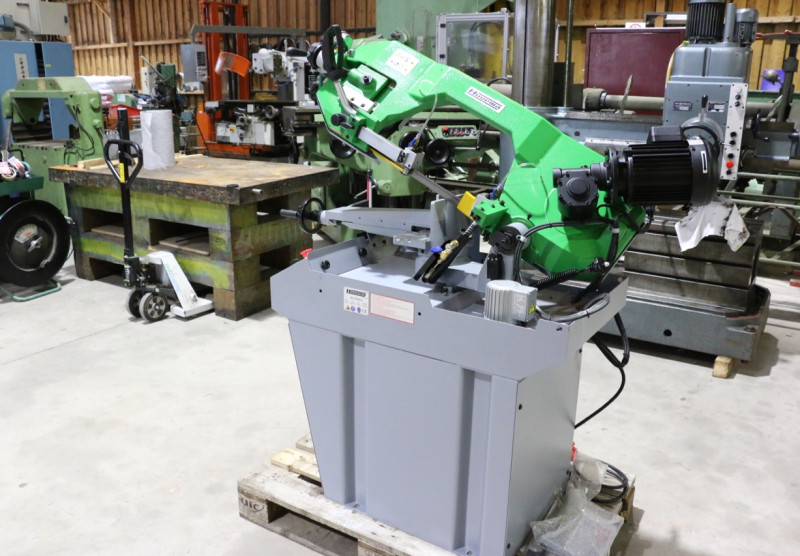

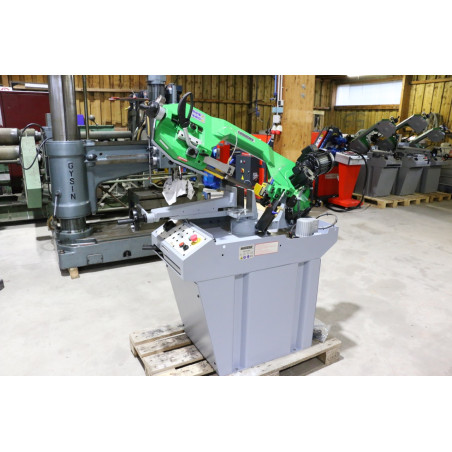

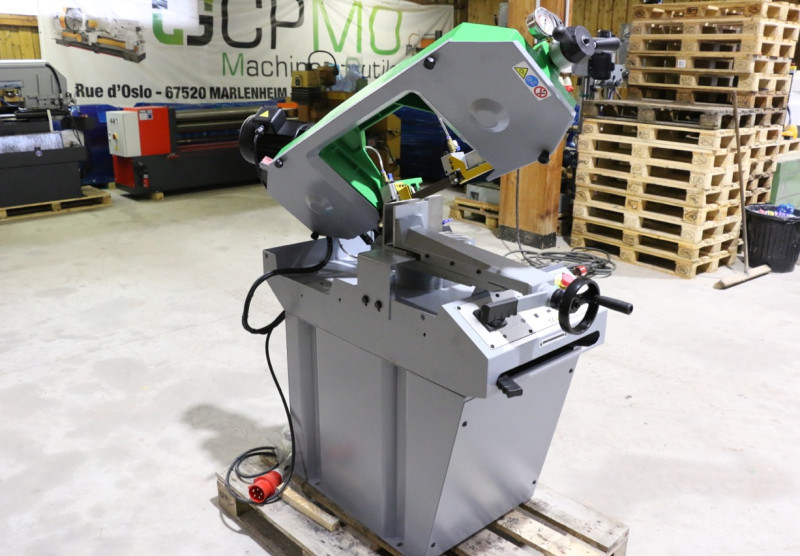

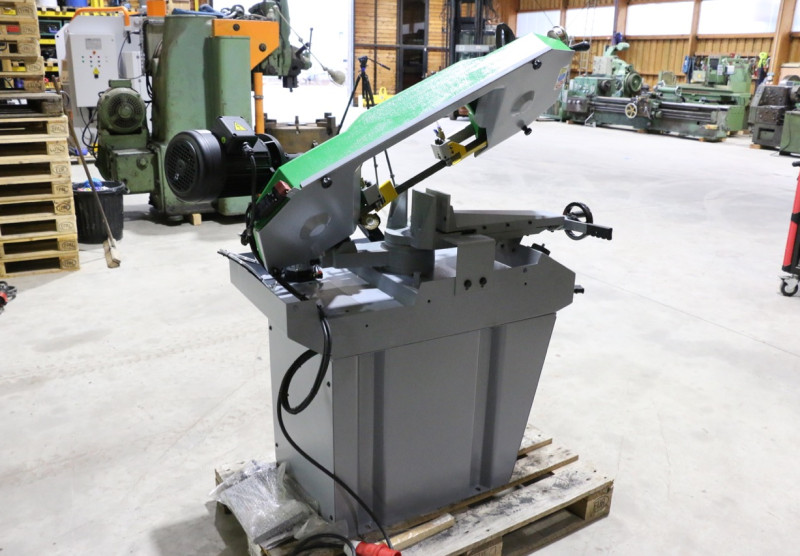

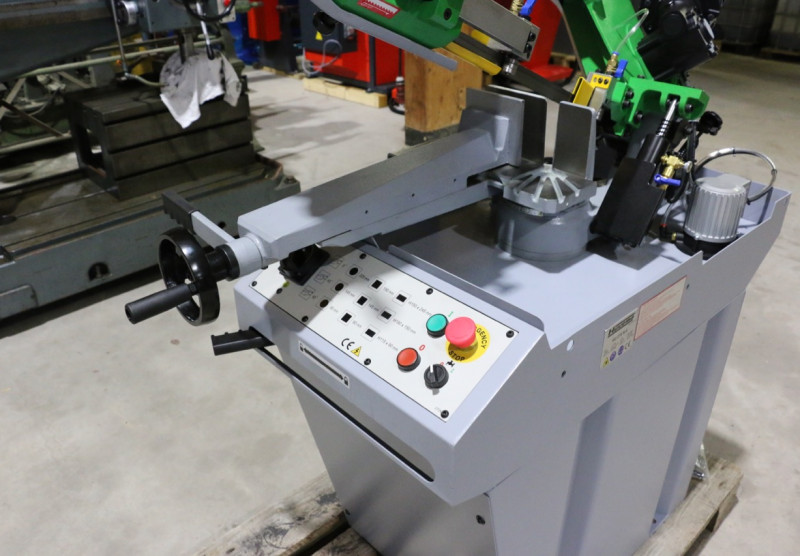

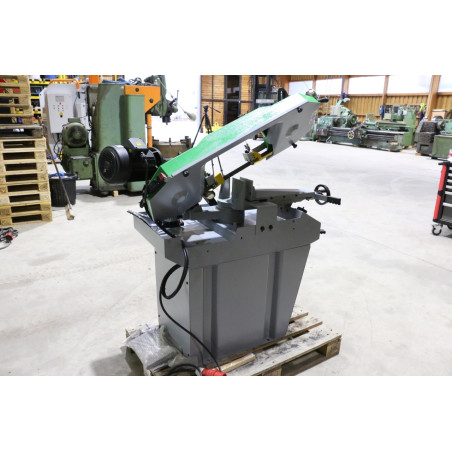

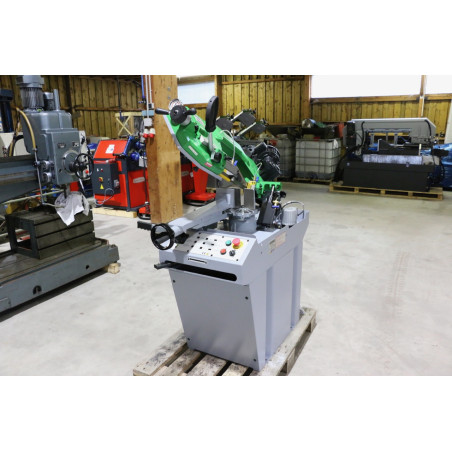

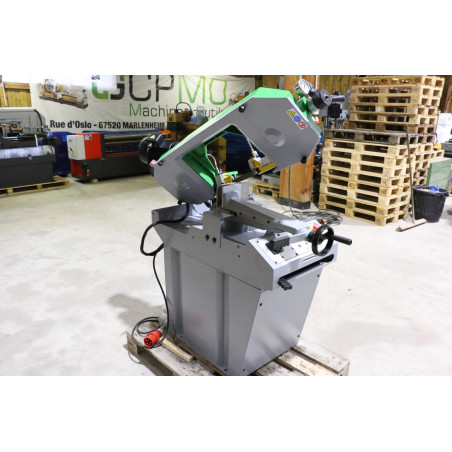

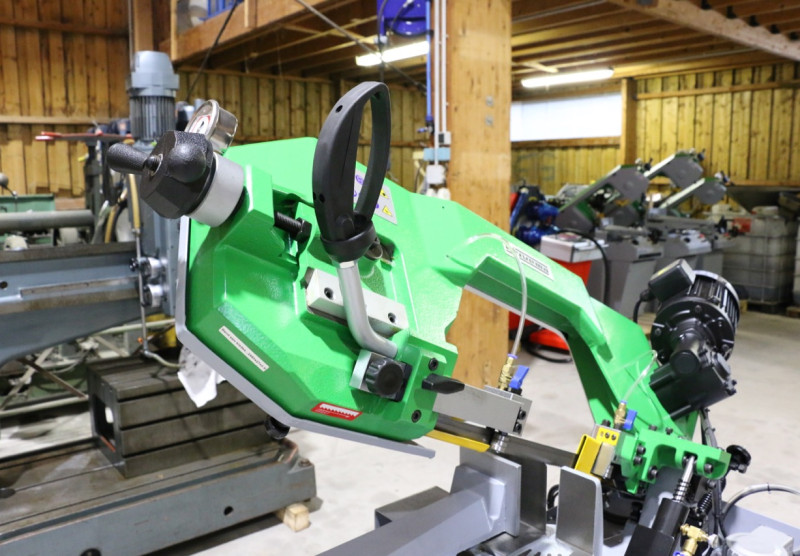

HU 270 N-4 Topline Band Saw
Data sheet
Controlled descent

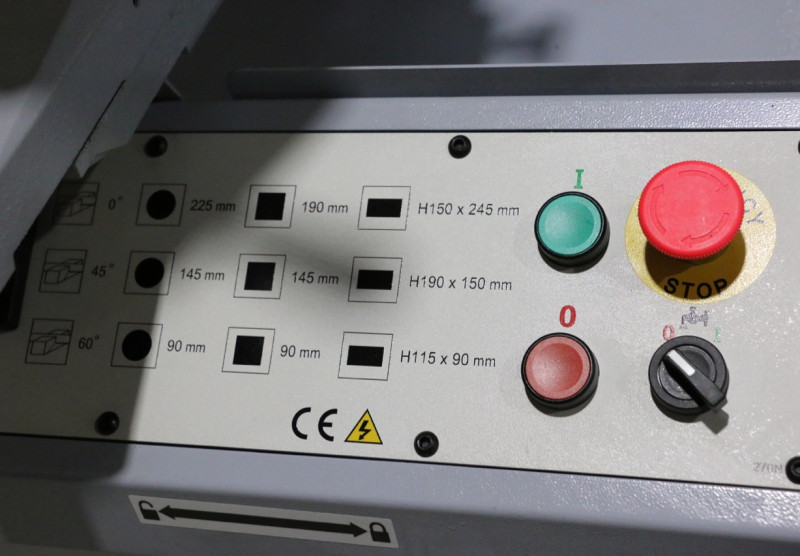

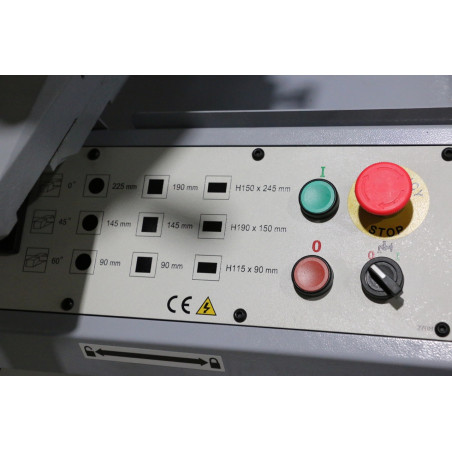

90° round sawing capacity 225 mm
90° sawing capacity
rectangular 245 x 150 mm
90° square sawing capacity 190 mm
Sawing capacity at 45° round 145 mm
45° sawing capacity
rectangular 150 x 190 mm
Sawing capacity at 45° square 145 mm
Sawing capacity at 60° round 90 mm
Sawing capacity at 60°
rectangular 90 x 115 mm
Sawing capacity at 60° square 90 mm
Saw blade dimensions 2480 x 27 x
0.9 mm
Engine power 1.1 kW
Pump power of
cooling 0.1 kW
Cutting speed 45 - 90
m/min
Number of cutting speeds 2
Object height 940 mm
Voltage 400 V
Weight 195 kg
Machine dimensions 1450 x 510 x
1450 mm
Features
Please note: The information on this page has been obtained to the best of our ability and belief, and from manufacturers wherever possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or constitute conditions of contract. We advise you to check all the vital details.
