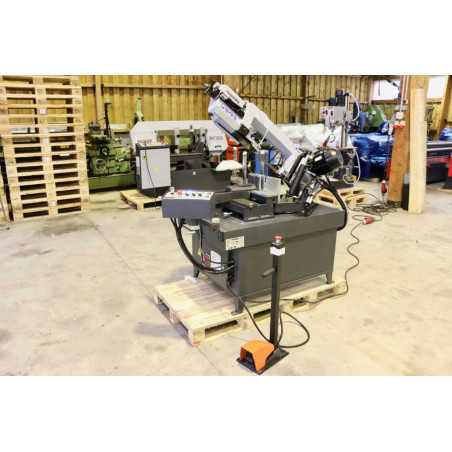

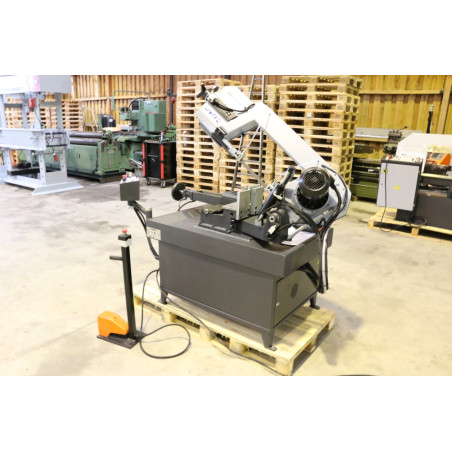

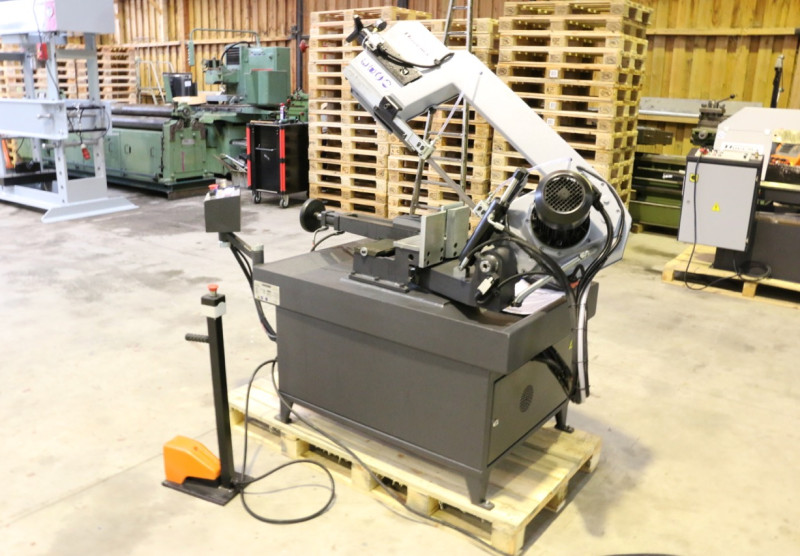

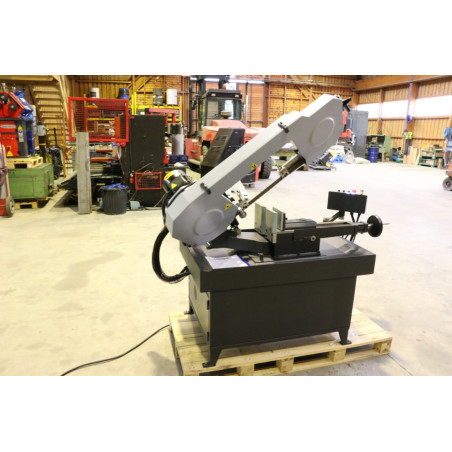

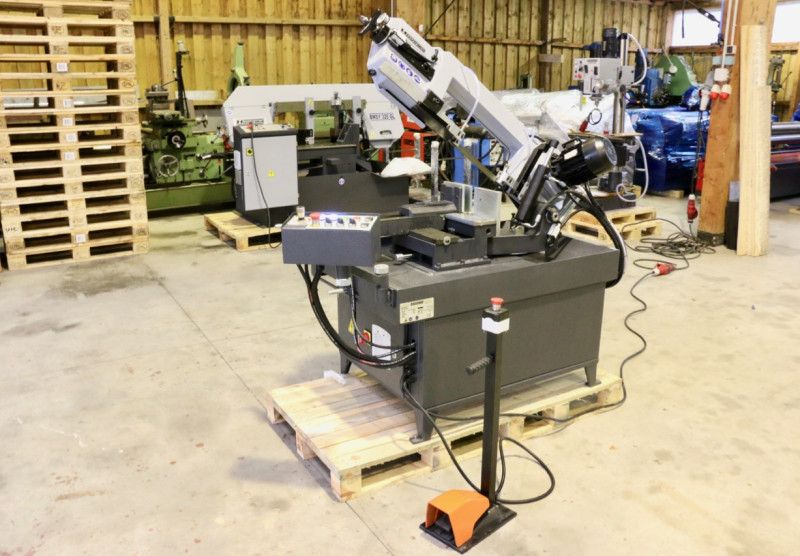

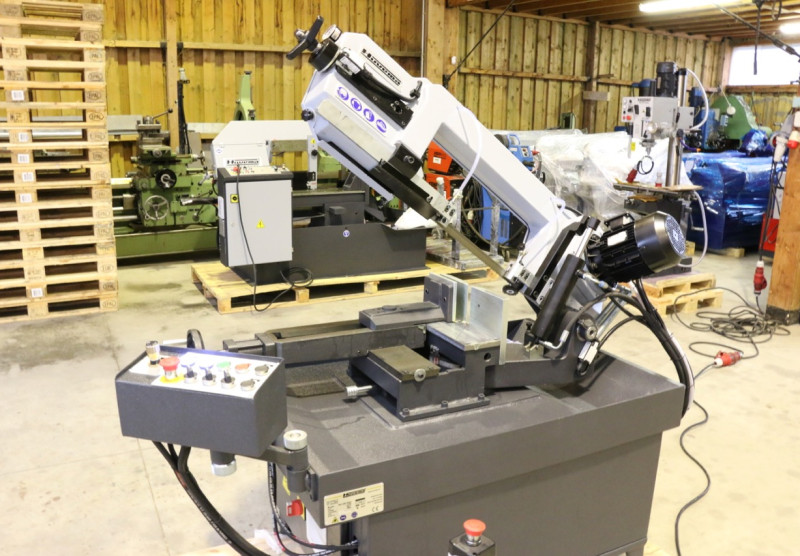

HU 230 DGH metal band saw
Data sheet
| Saw blade dimensions | : 27x0.9x2720 mm |
| Blade speed | : 35-70 m/min |
| Engine power | : 1.0-1.5 kW |
| Tension | : 400 V |
| 90° round cutting capacity | : 230 mm |
| 90° rectangular cutting capacity | : 320x130 mm |
| 90° square cutting capacity | : 230 mm |
| 60° round cutting capacity | : 120 mm |
| 60° rectangular cutting capacity | : 120x105 mm |
| Cutting capacity at 60° square | : 105 mm |
| 45° right round cutting capacity | : 180 mm |
| 45° right rectangular cutting capacity | : 220x60 mm |
| Cutting capacity at 45° right square | : 150 mm |
| 45° left round cutting capacity | : 220 mm |
| 45° left rectangular cutting capacity | : 230x140 mm |
| Cutting capacity at 45° left square | : 190 mm |
| Dimensions | : 1350x900x1300 mm |
| Net weight | : 410 kg |

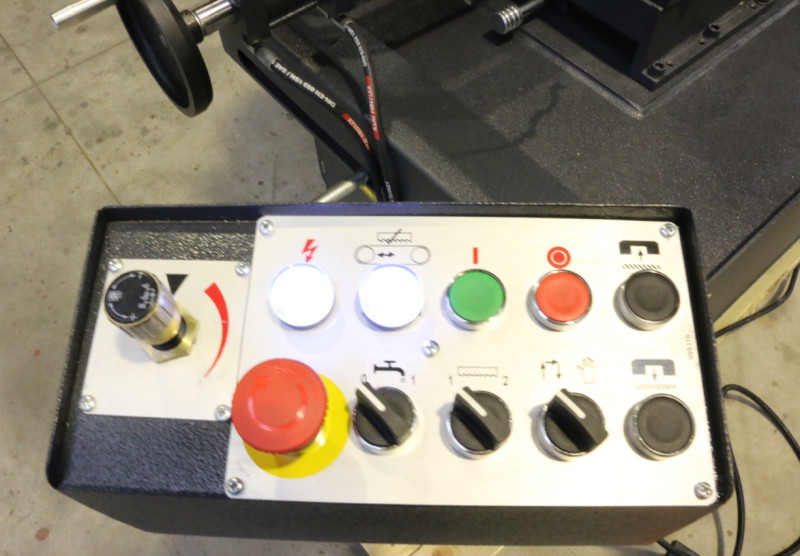

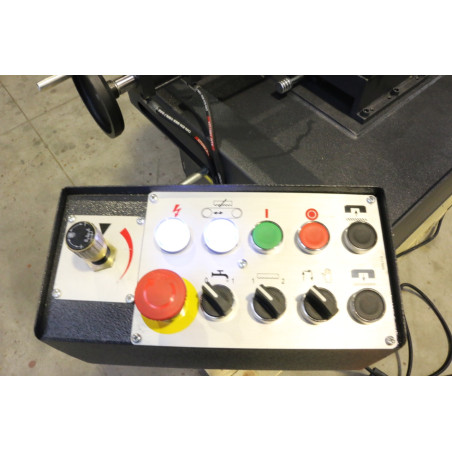

Separate control panel.
Hydraulic vice.
Pedal operation.
Semi-automatic hydraulic machine.
Features
Please note: The information on this page has been obtained to the best of our ability and belief, and from manufacturers wherever possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or constitute conditions of contract. We advise you to check all the vital details.
