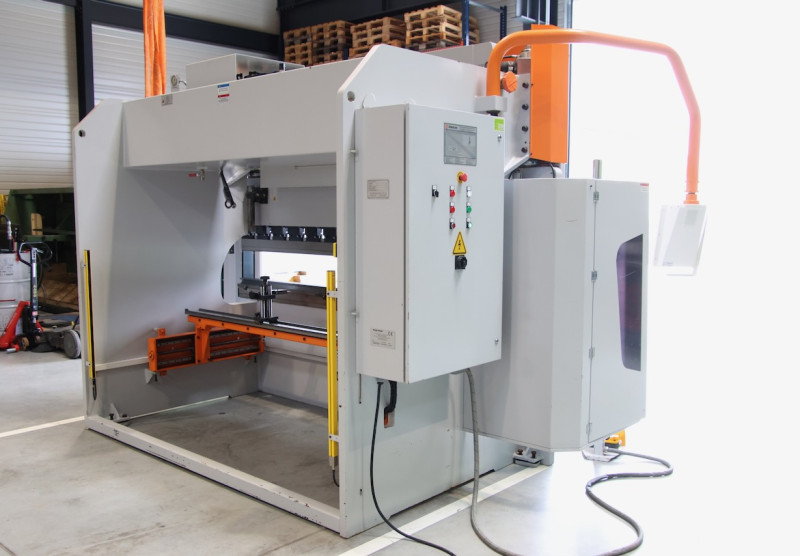

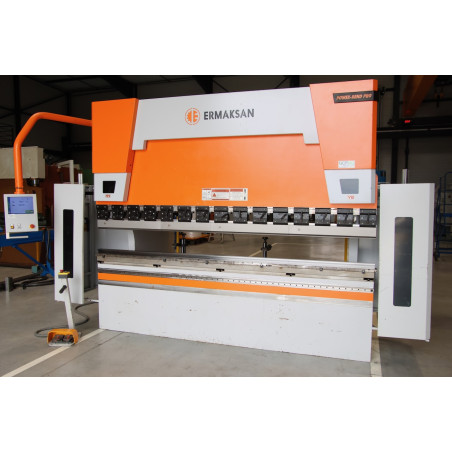

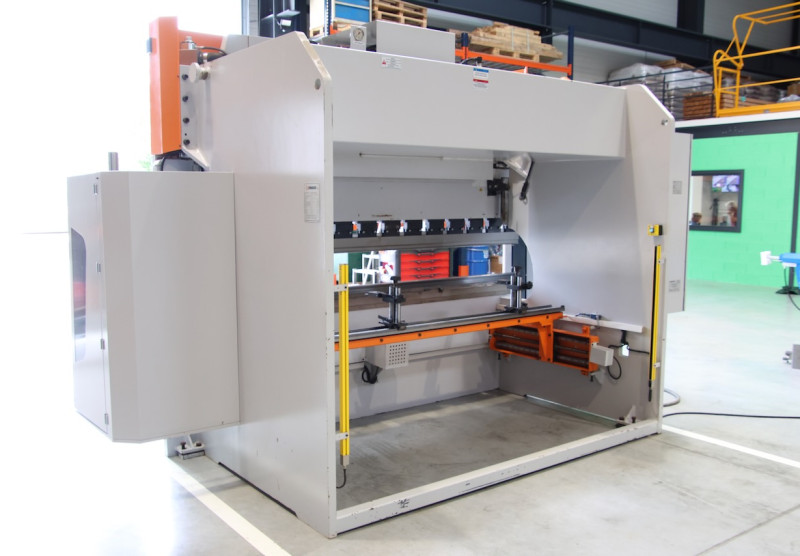

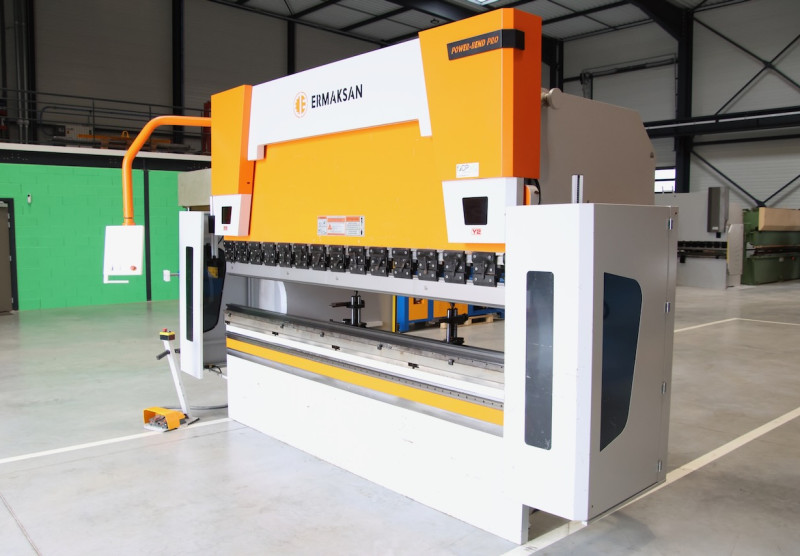

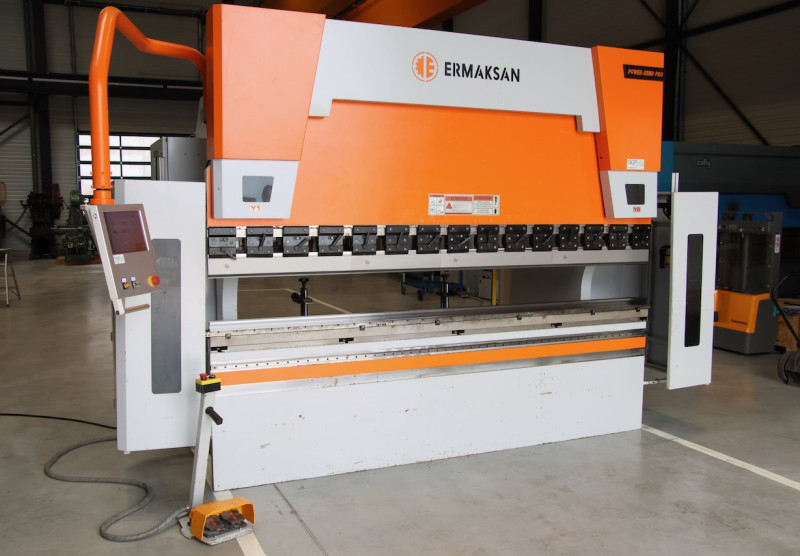

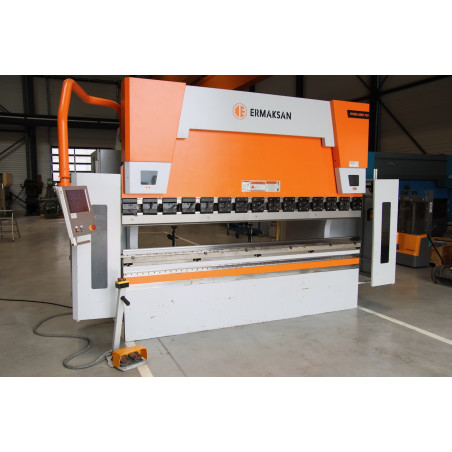

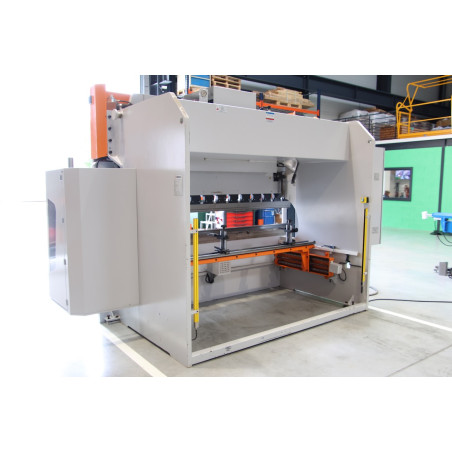

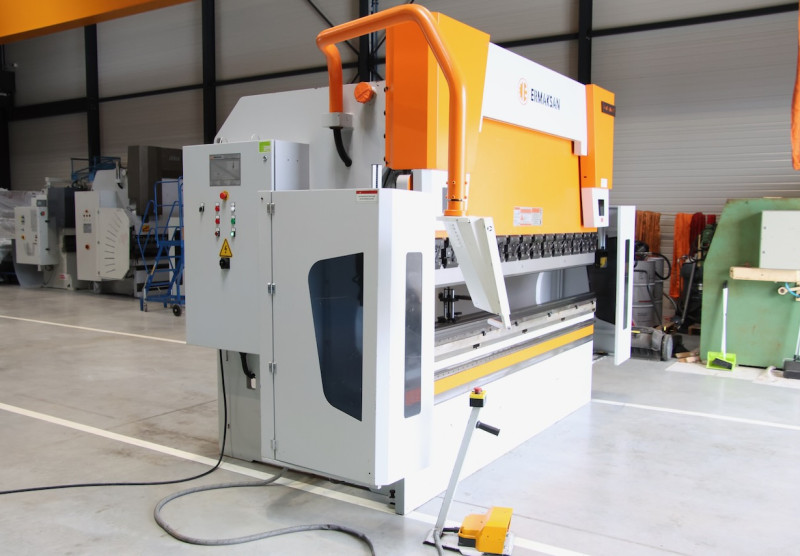

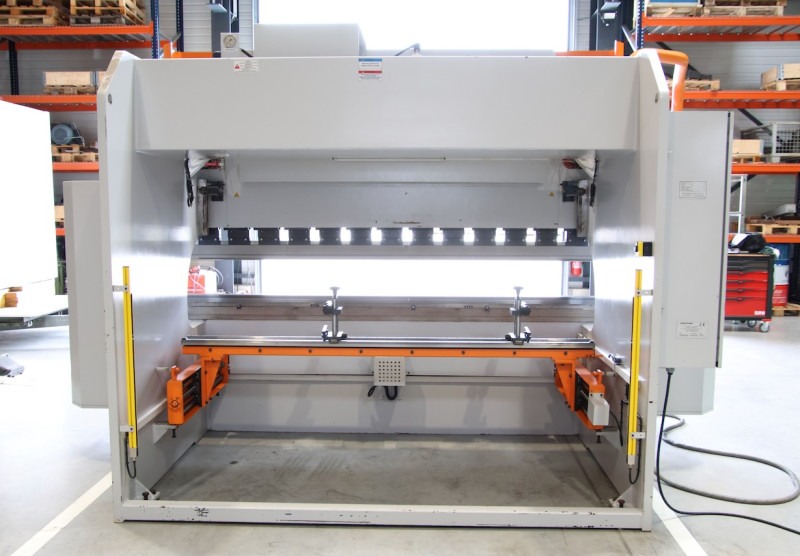

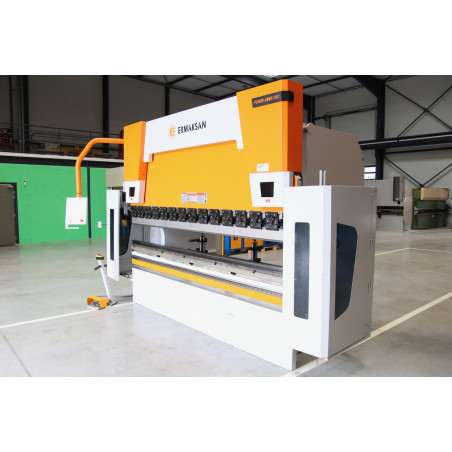

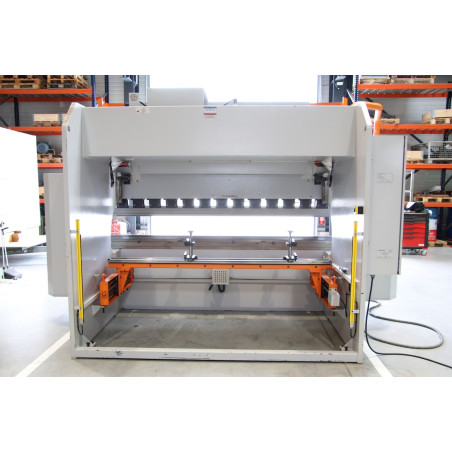

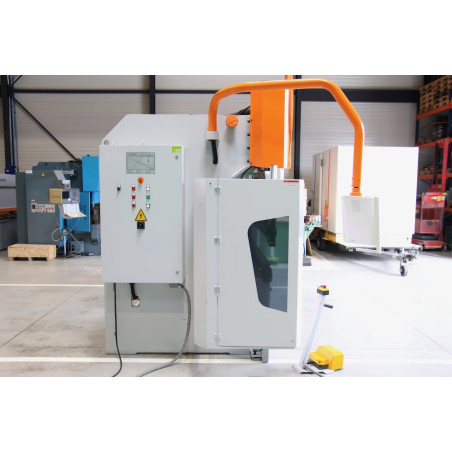

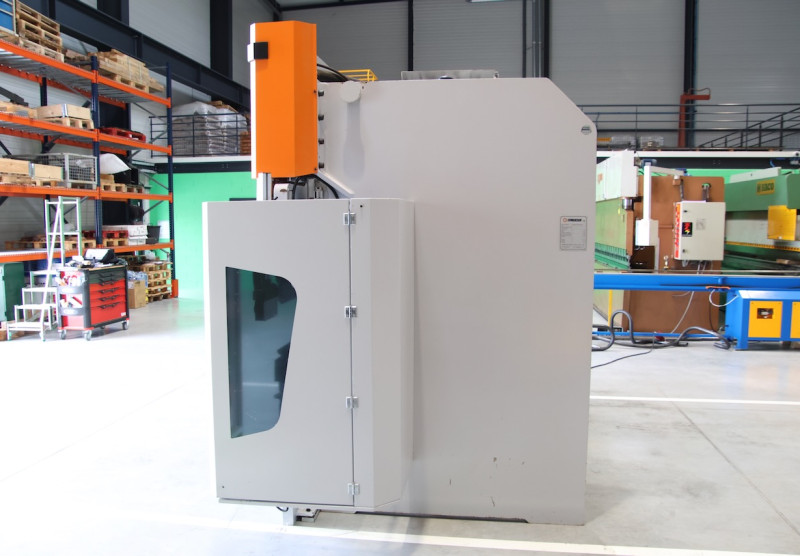

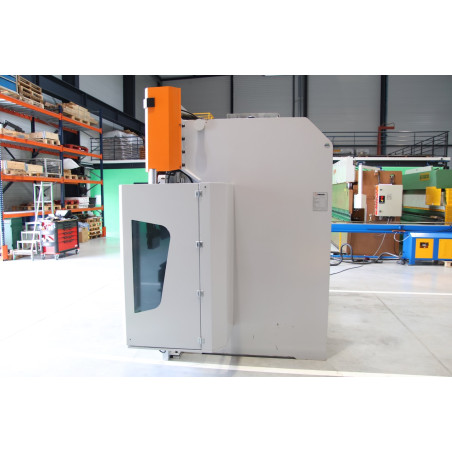

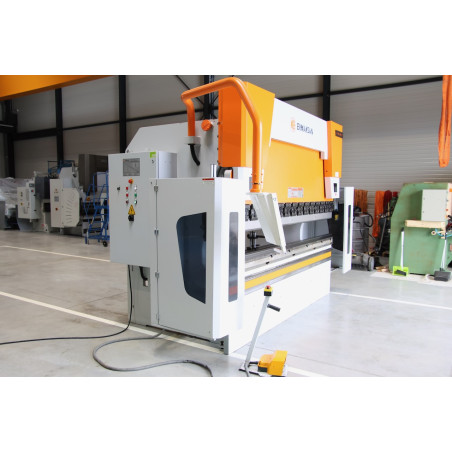

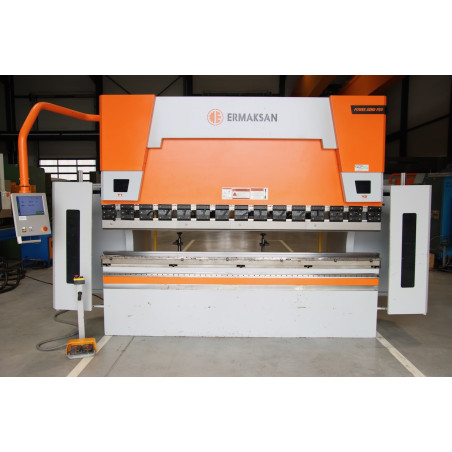

Used ERMAKSAN POWERBEND-PRO 3100/135 3-axis press brake
Data sheet

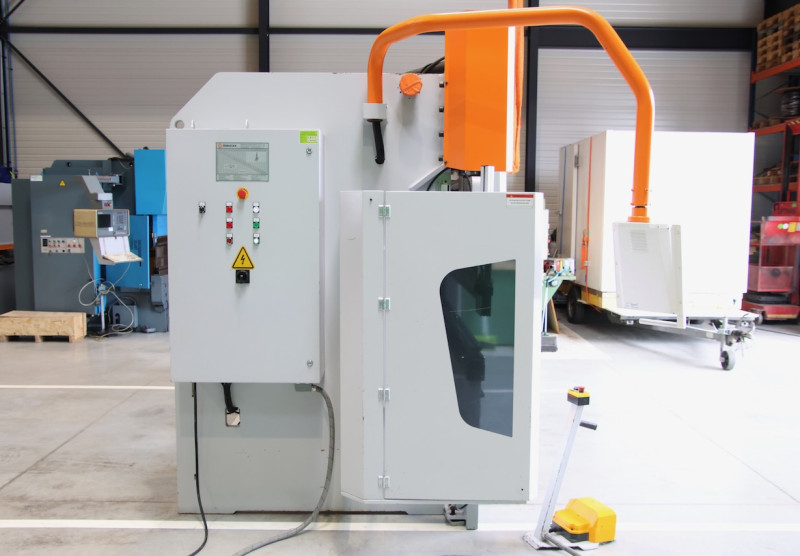

Protective laser
CNC axes: Y1/Y2/X
Manual axes: Z1/Z2/R1/R2

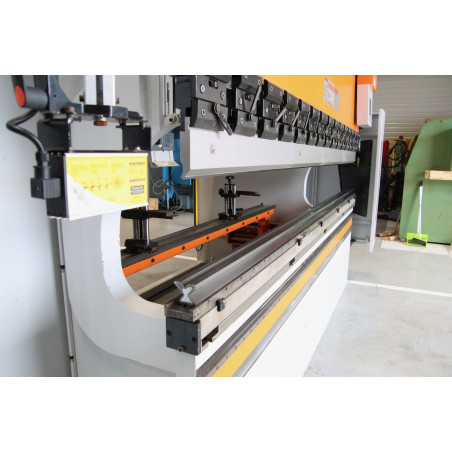

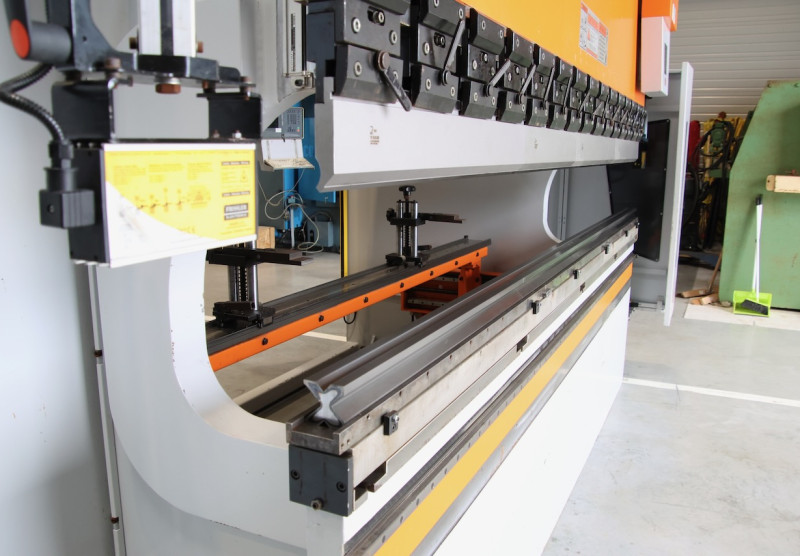

NEW UPPER AND LOWER TOOLS!!

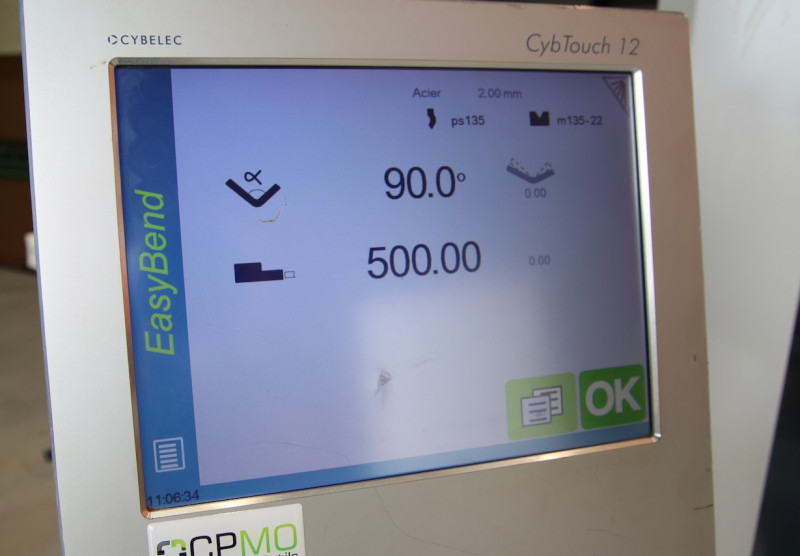

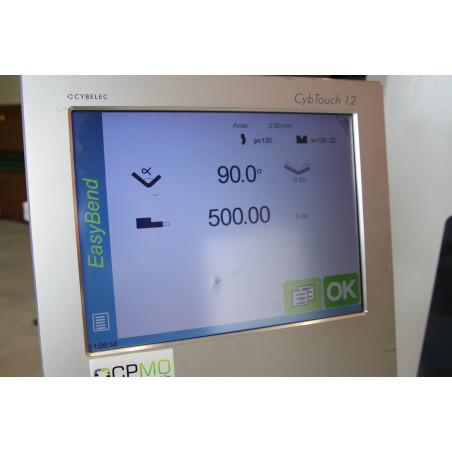

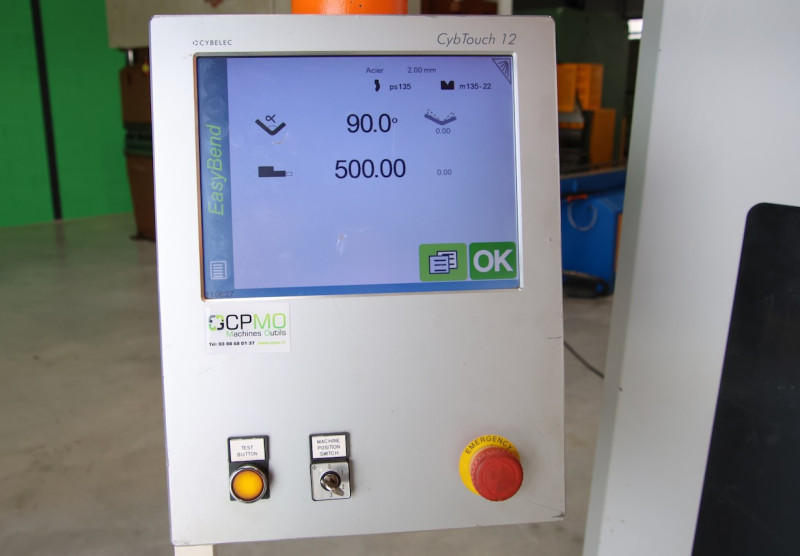

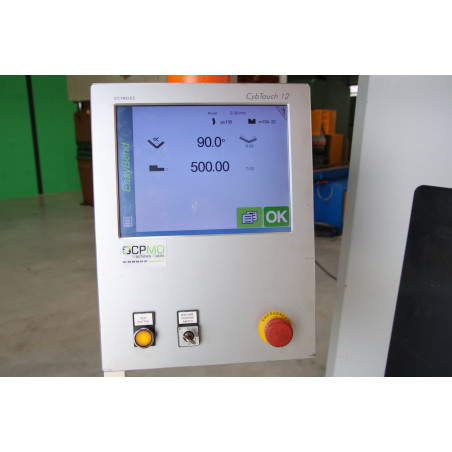

CYBELEC CYBTOUCH 12 graphic CN
Features
- Folding length:
- 3100 mm
- Power :
- 135 tonnes
- Swan neck:
- 400 mm
- Distance between uprights:
- 2600 mm
- Slide stroke:
- 275 mm

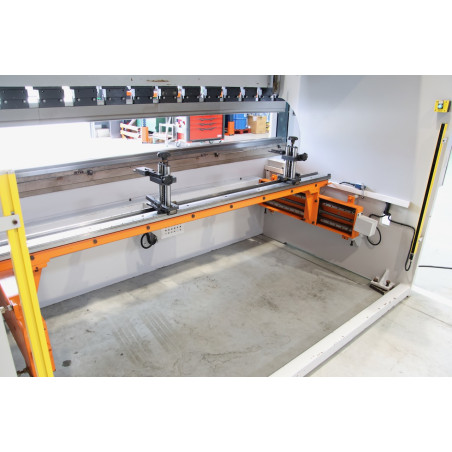

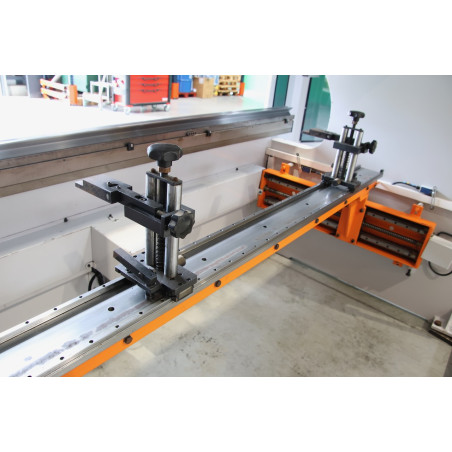

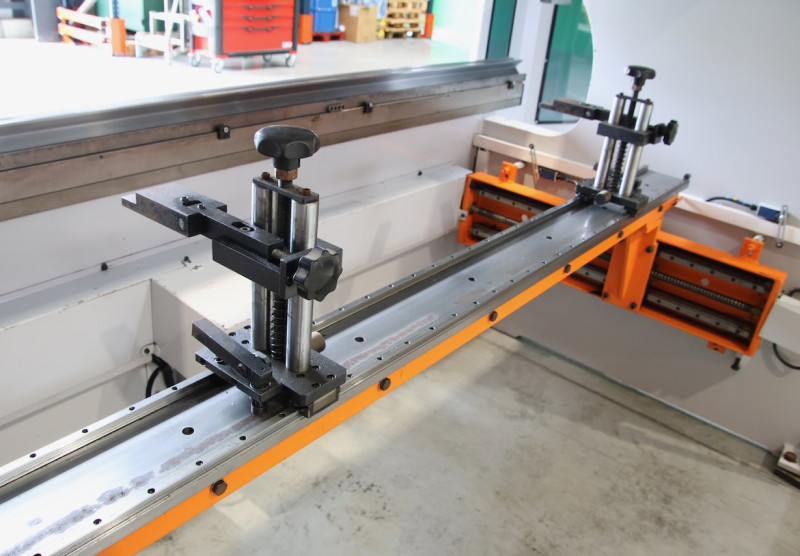

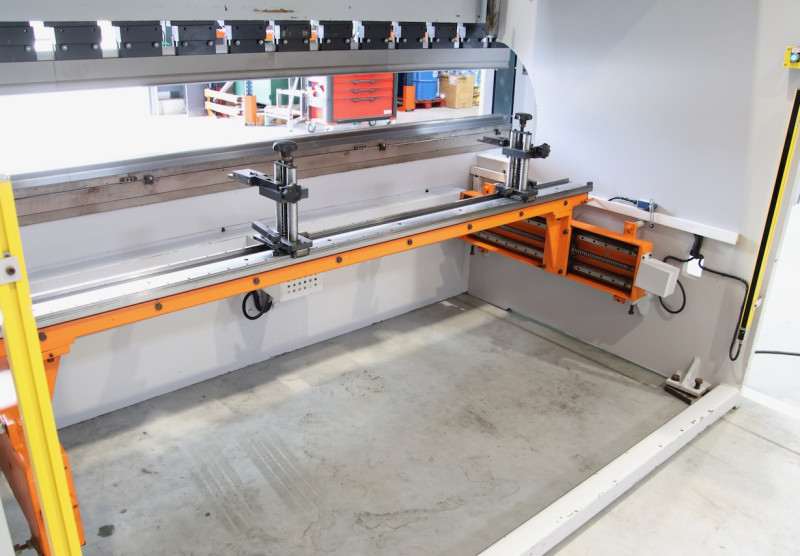

- Motorized rear stop stroke:
- 800 mm
- Approach/work/return speeds:
- 200/10/190 mm/s
- Backstop speed:
- 230 mm/s
- Table-slider passage:
- 550 mm
- Table width:
- 90 mm
- Dimensions of the machine L x W x H:
- 4250 x 2050 x 2650 mm
- Weight :
- 8200 kgs
- Main engine power:
- 11 kW
Please note: The information on this page has been obtained to the best of our ability and belief, and from manufacturers wherever possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or constitute conditions of contract. We advise you to check all the vital details.
