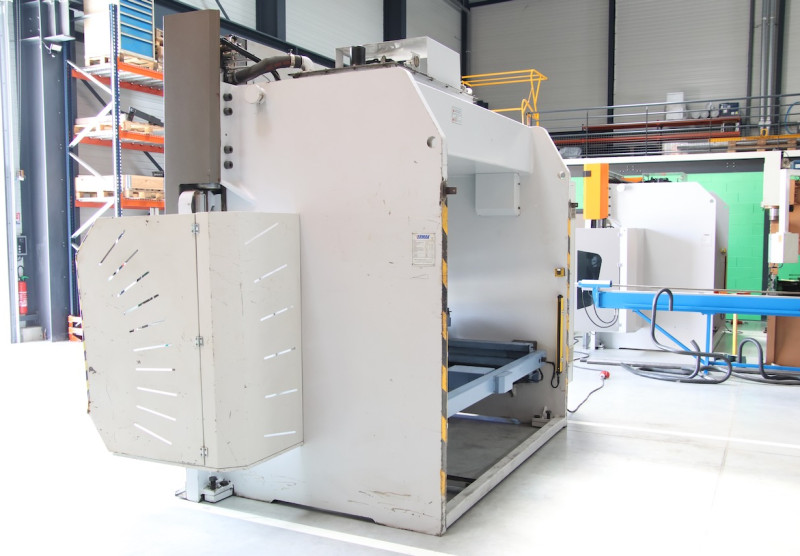

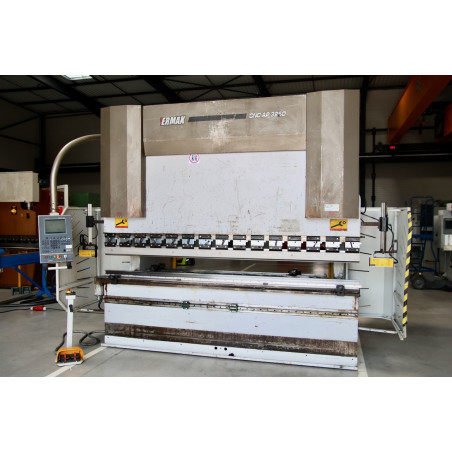

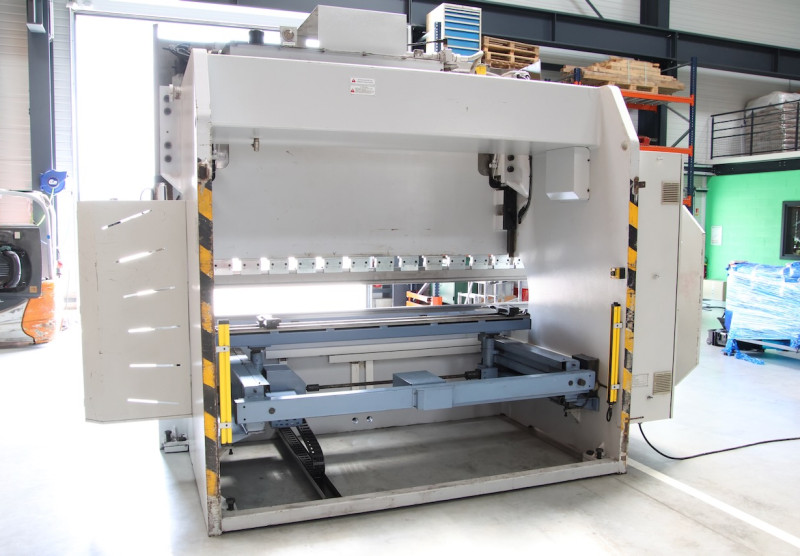

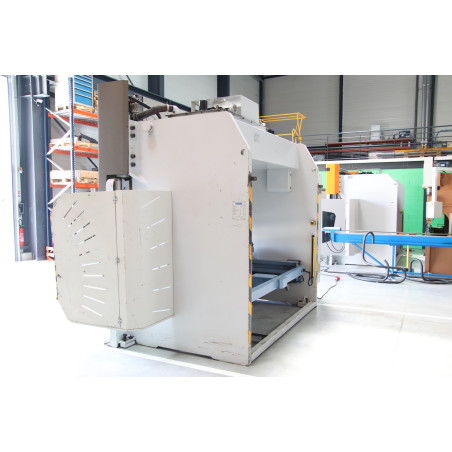

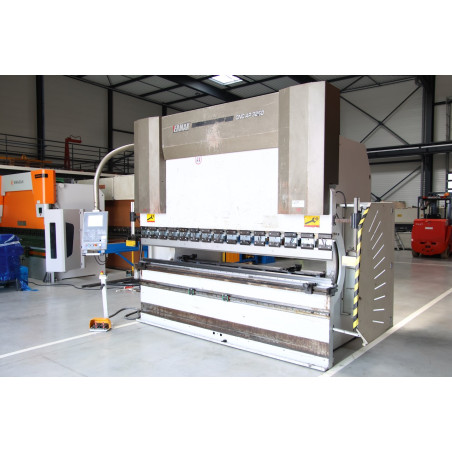

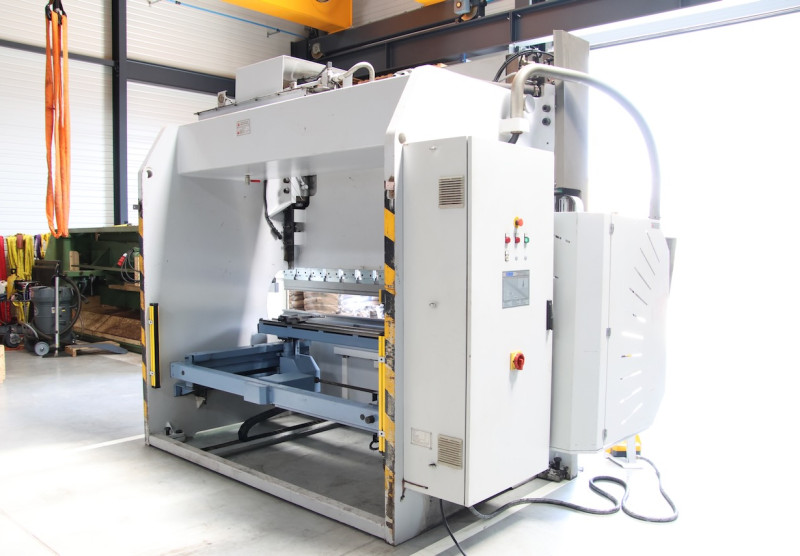

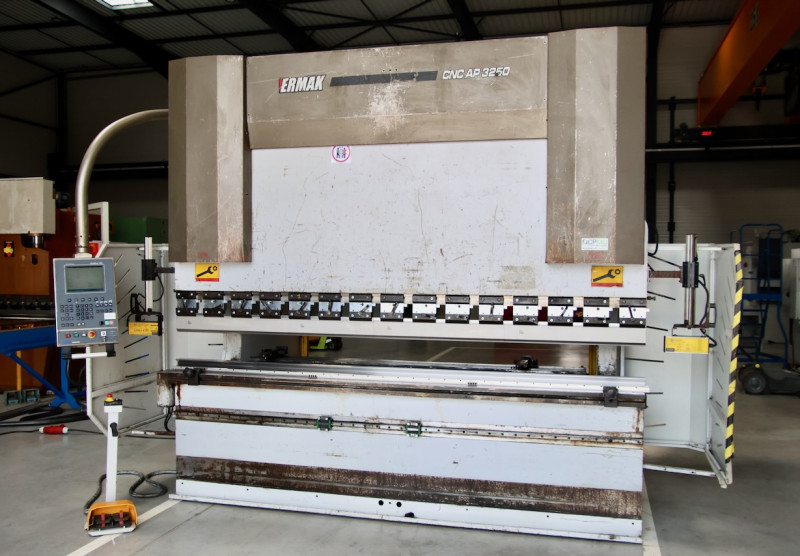

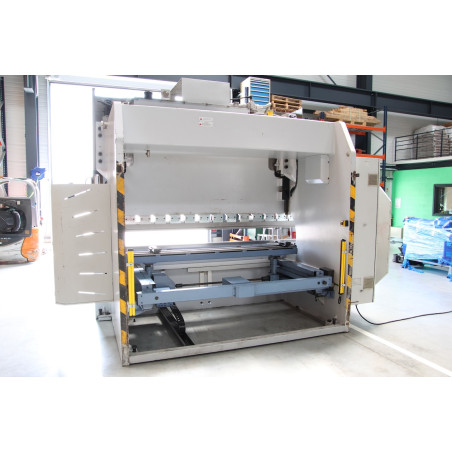

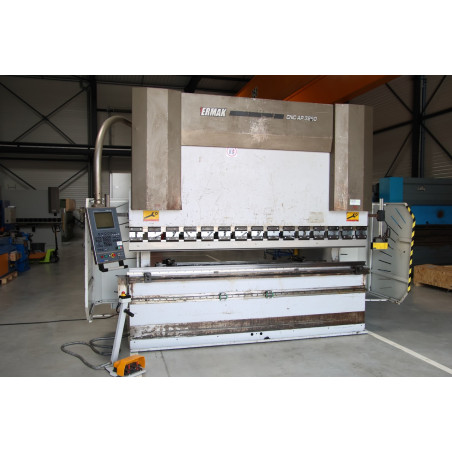

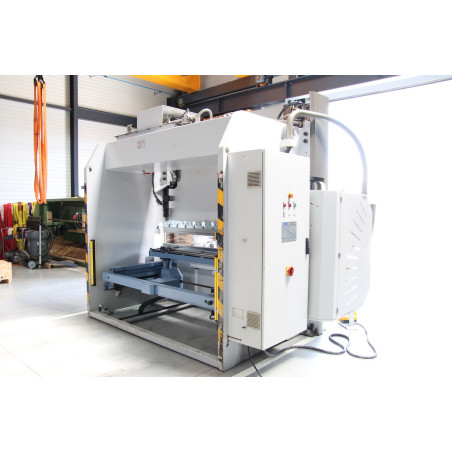

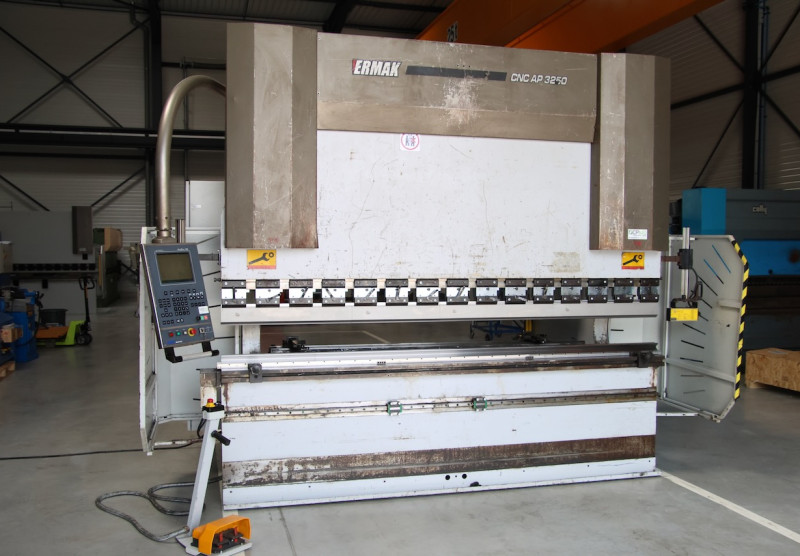

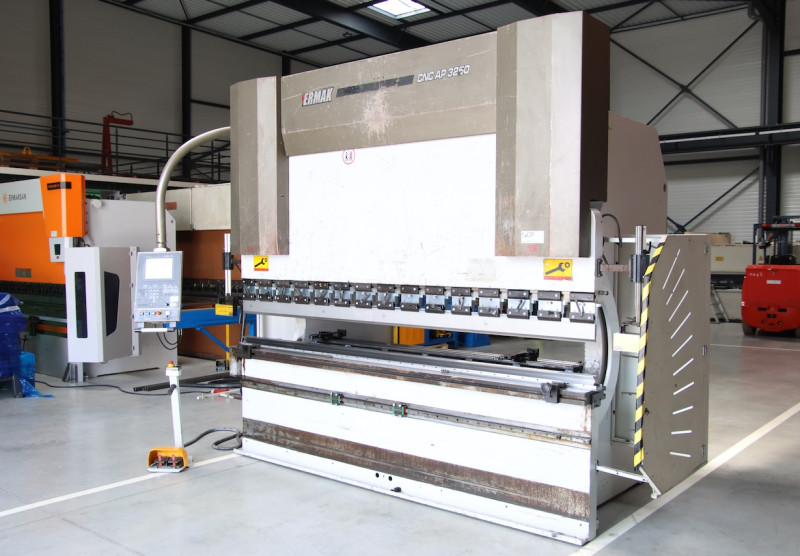

Used ERMAKSAN CNC AP 3100 x 250 press brake

Data sheet

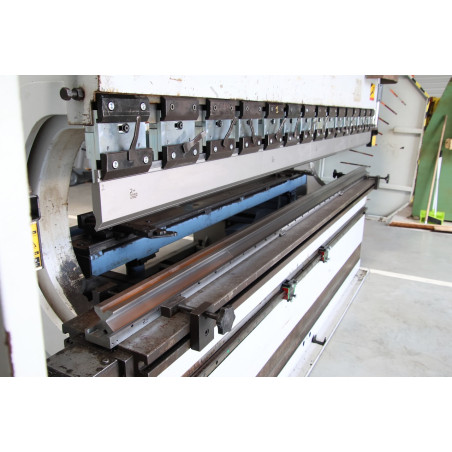

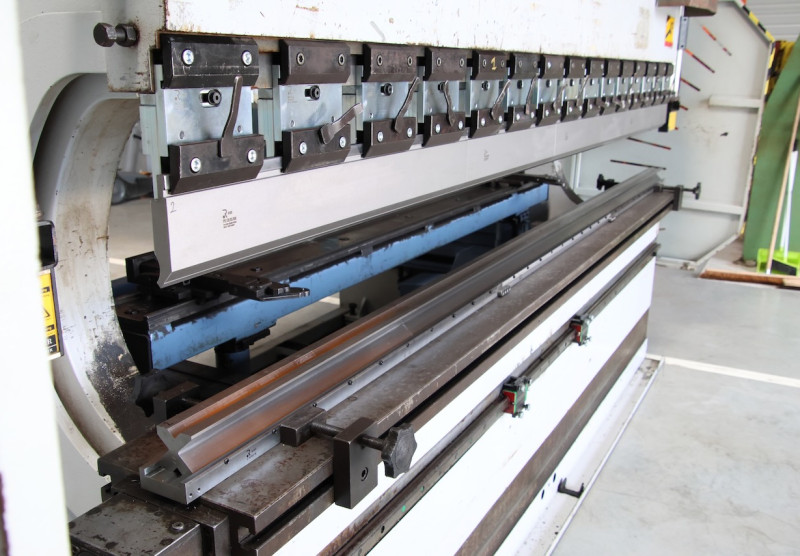

NEW INTERMEDIATES/PUNCHES/DIES.

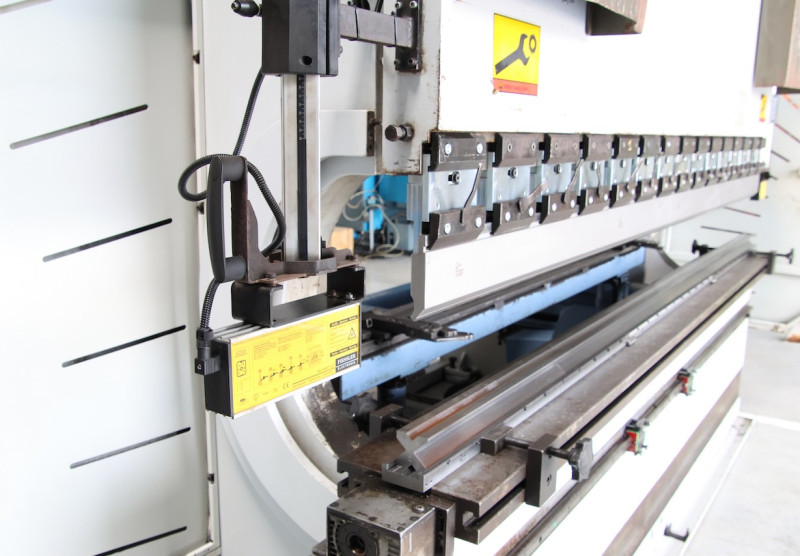

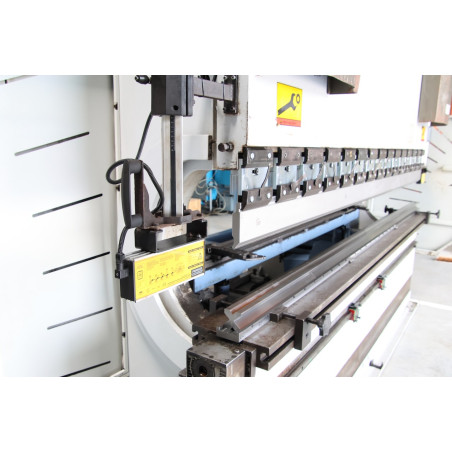

Protective laser

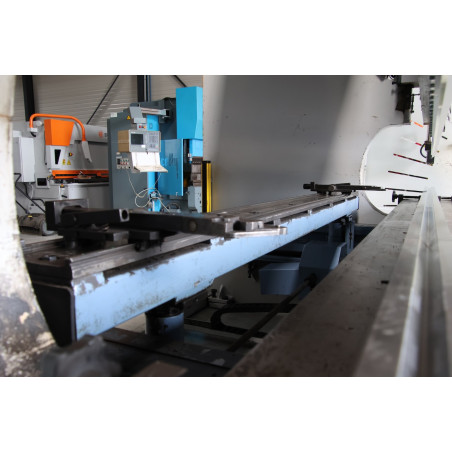

CNC bending table

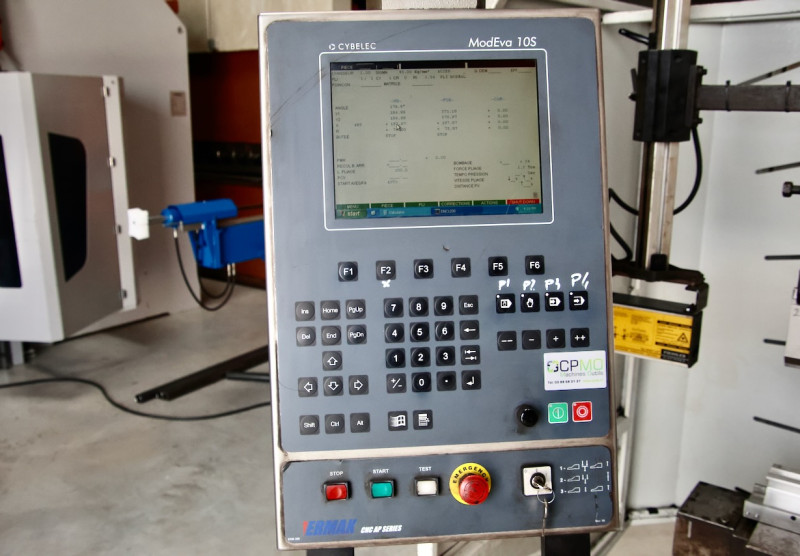

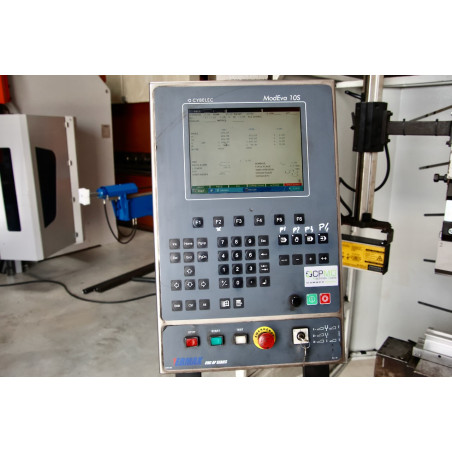

CN CYBELEC MODEVA 10S

CNC axes: Y1/Y2/X/R

Z1/Z2 manuals

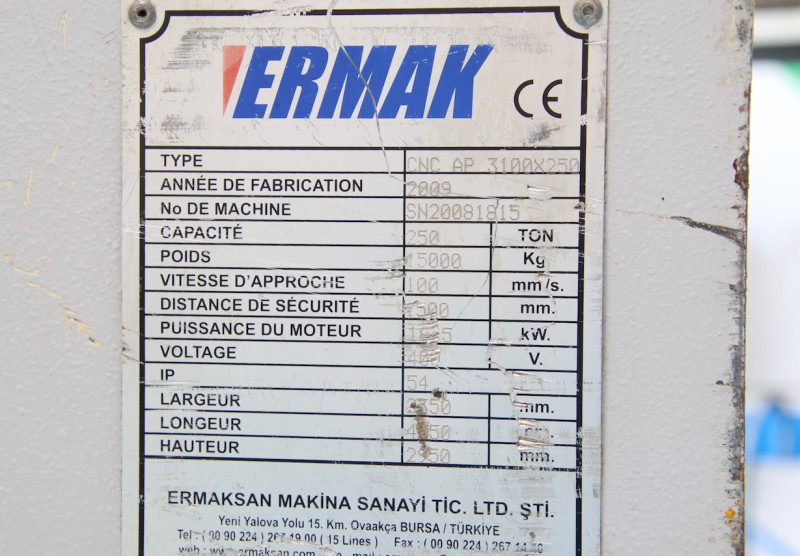

Year 2009

ABOVE-GROUND MACHINE


Features

Folding length:
3100 mm
Power :
250 tonnes
Distance between uprights:
2550 mm

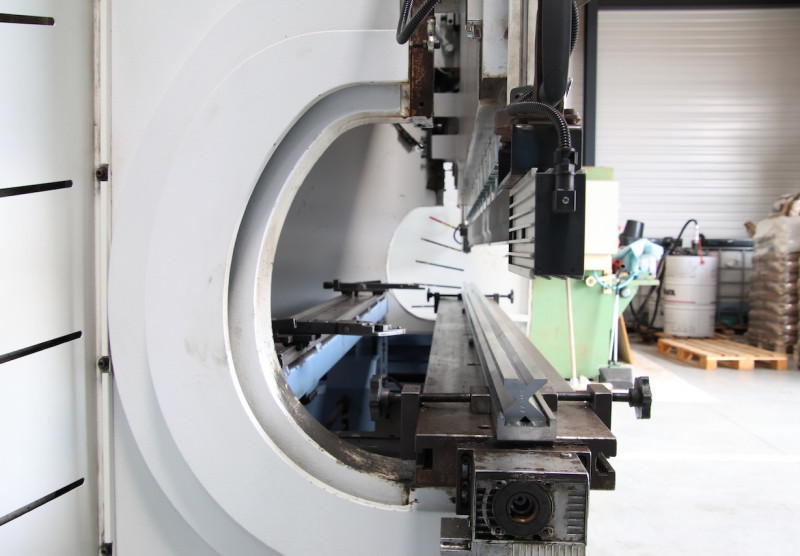

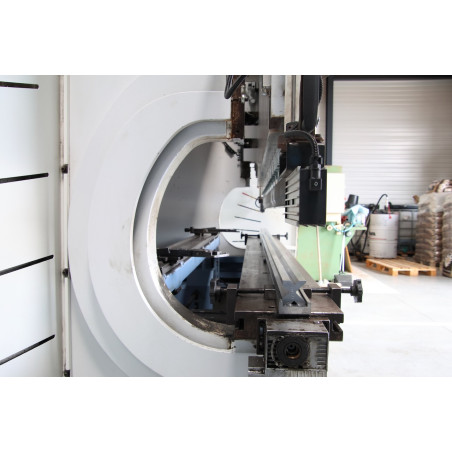

Swan neck:
400 mm

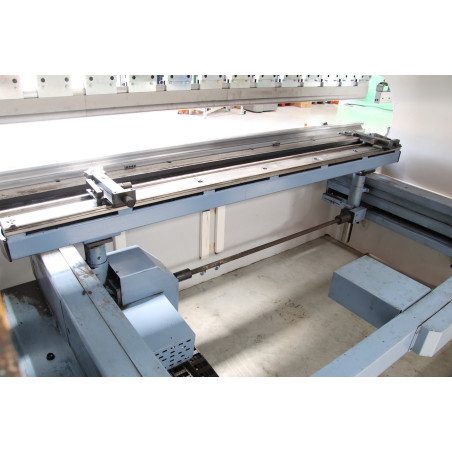

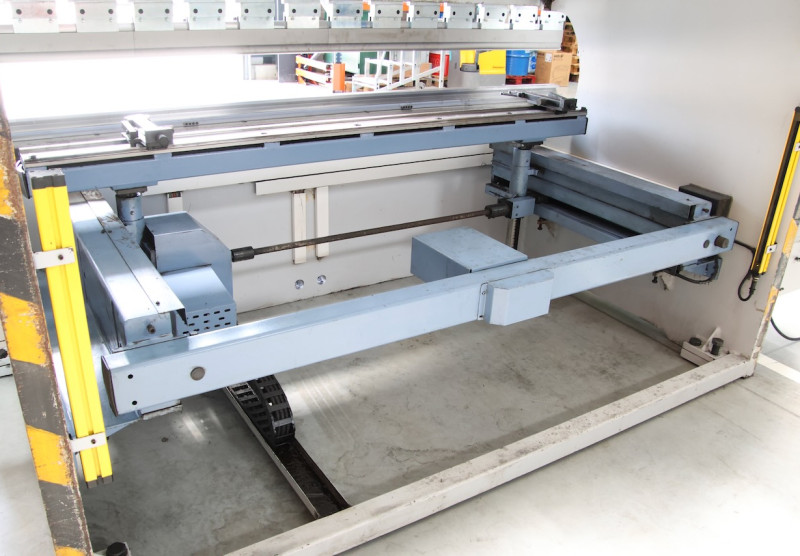

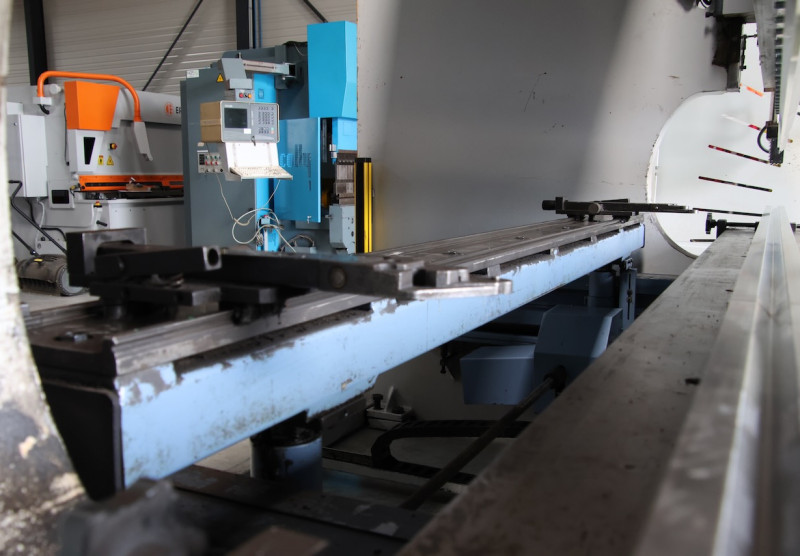

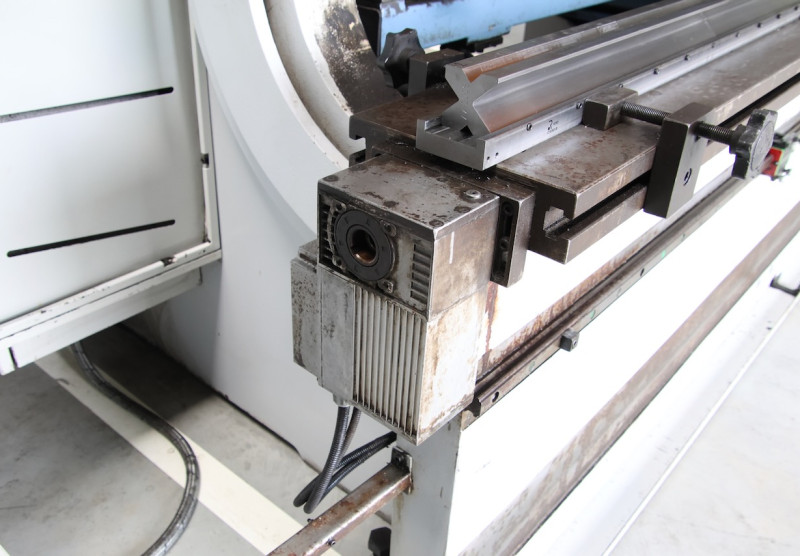

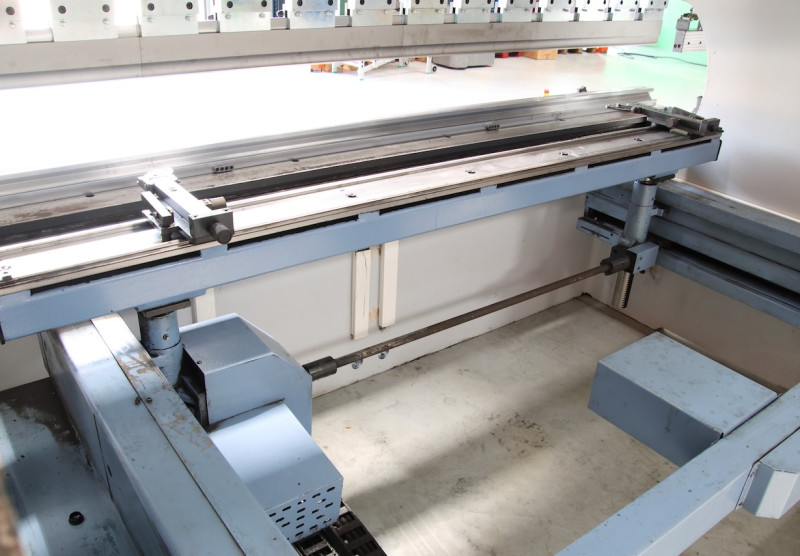

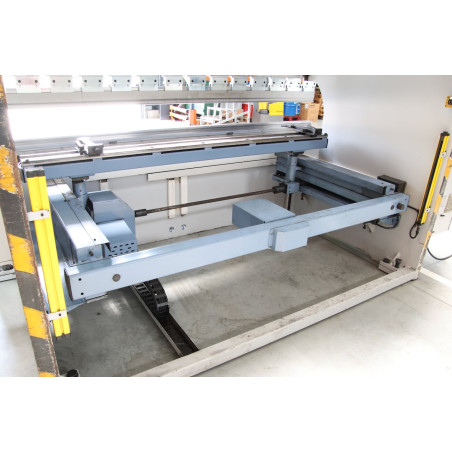

Motorized rear stop stroke:
800 mm
Slide stroke:
250 mm
Main engine power:
18.5 kW
Table-slider passage:
517 mm
Approach/work/return speeds:
100/8/90 mm/s
Working height:
900 mm
Table width:
300 mm
Dimensions of the machine L x W x H:
4550 x 2350 x 2950 mm
Weight :
14950 kgs
