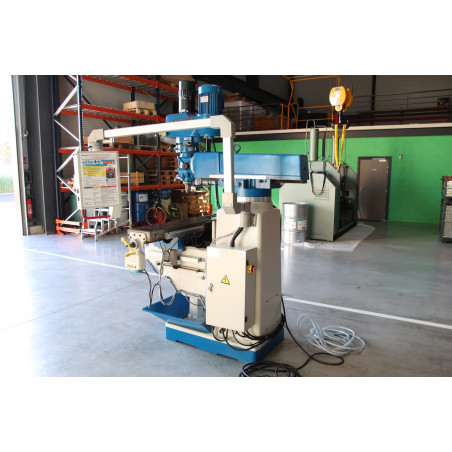

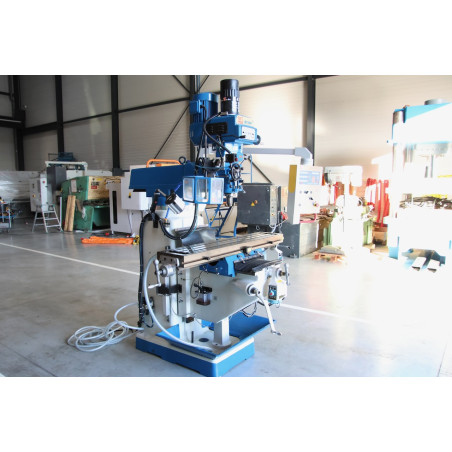

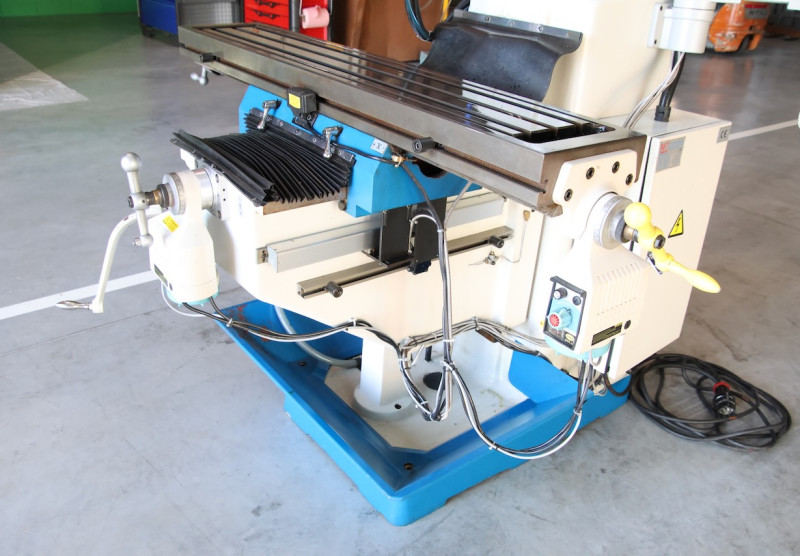

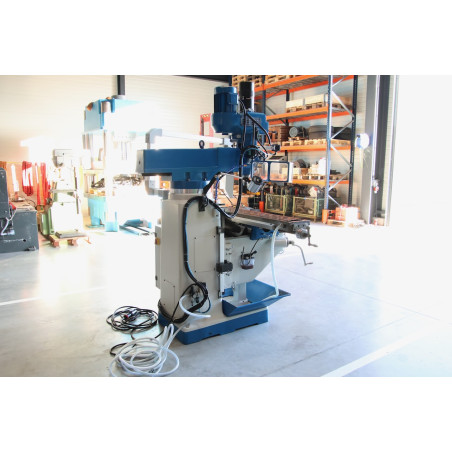

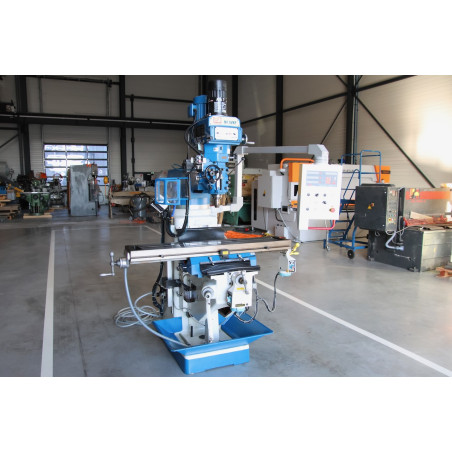

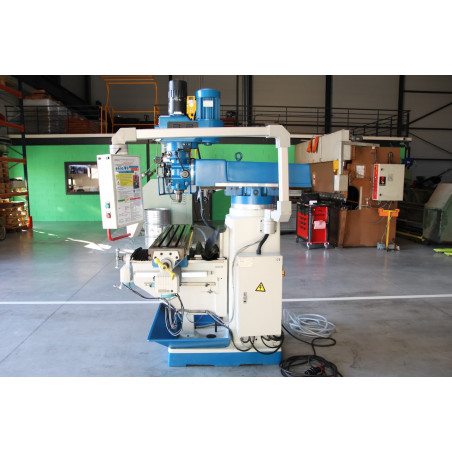

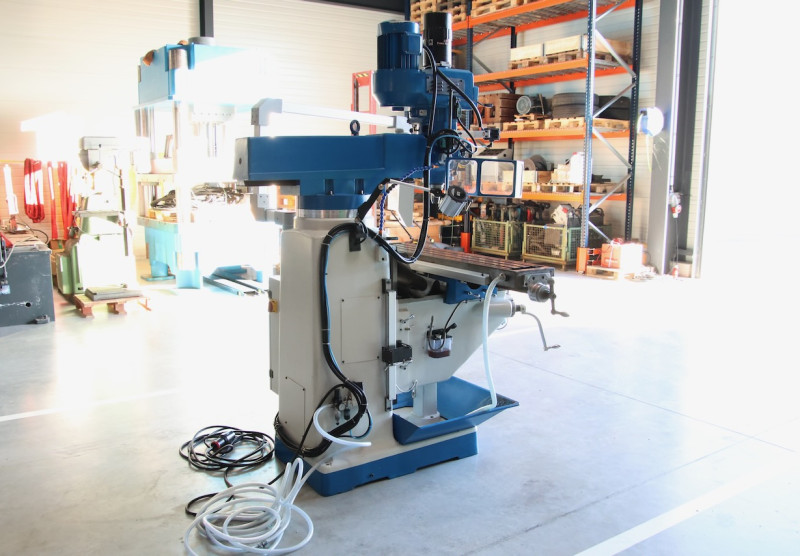

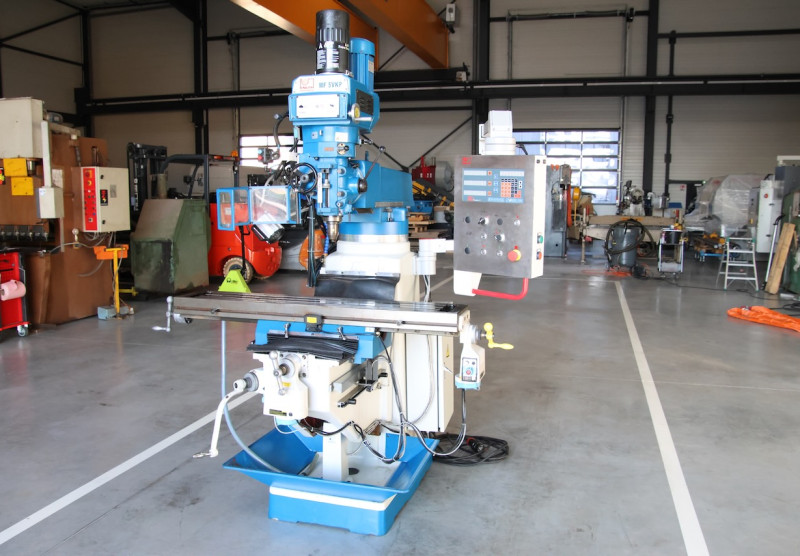

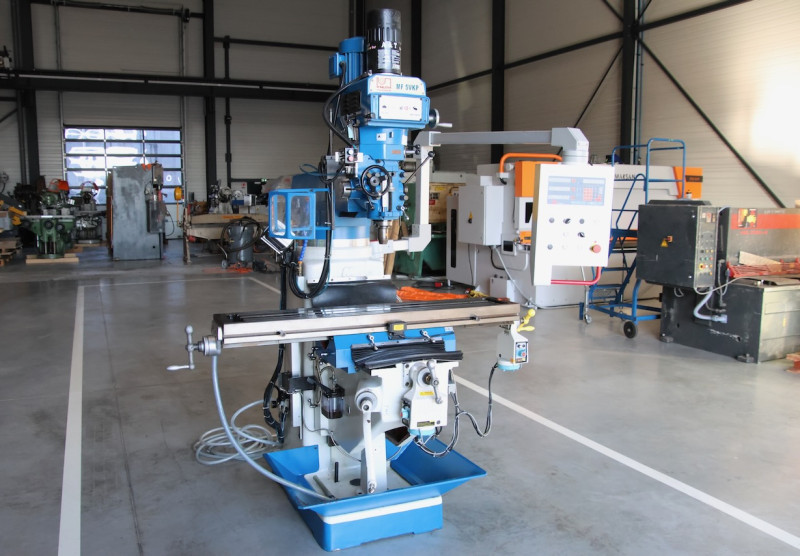

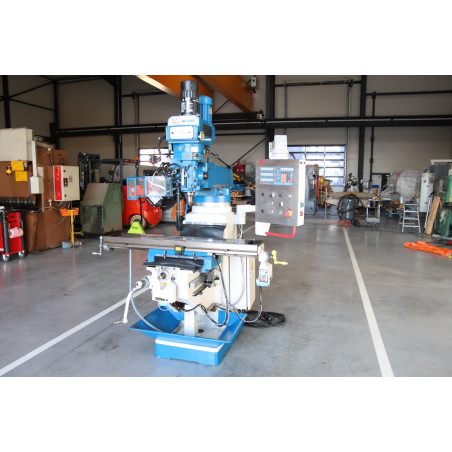

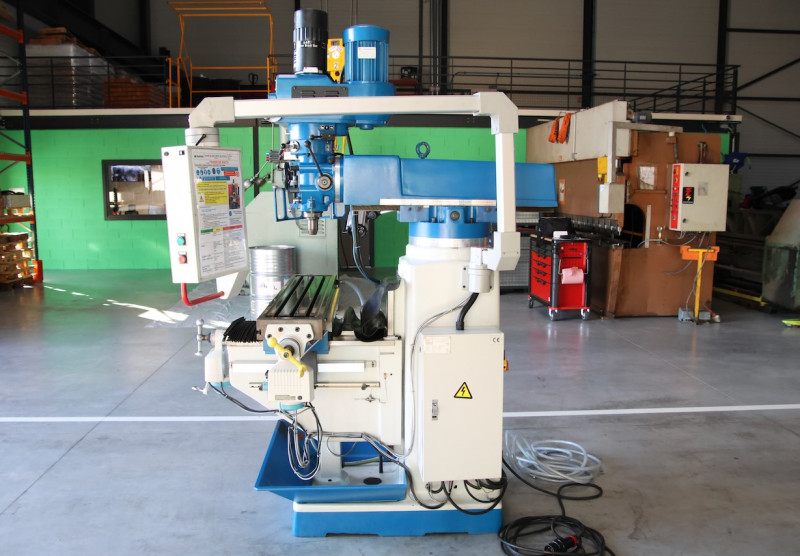

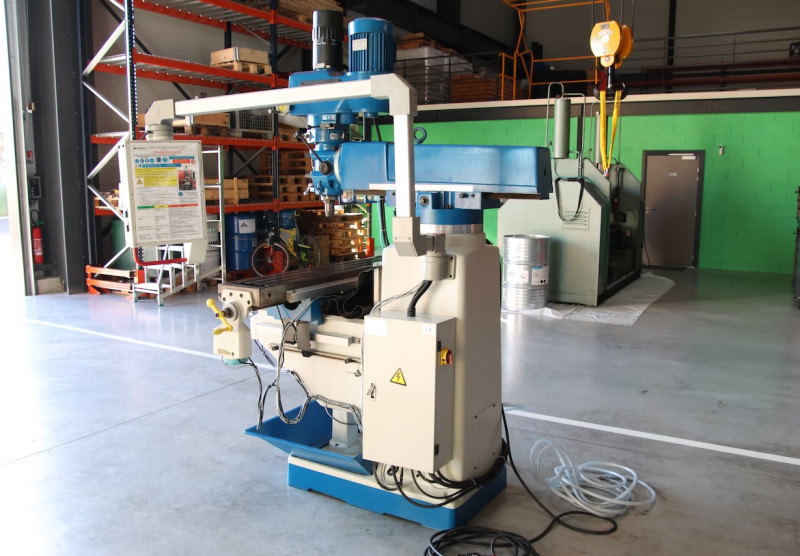

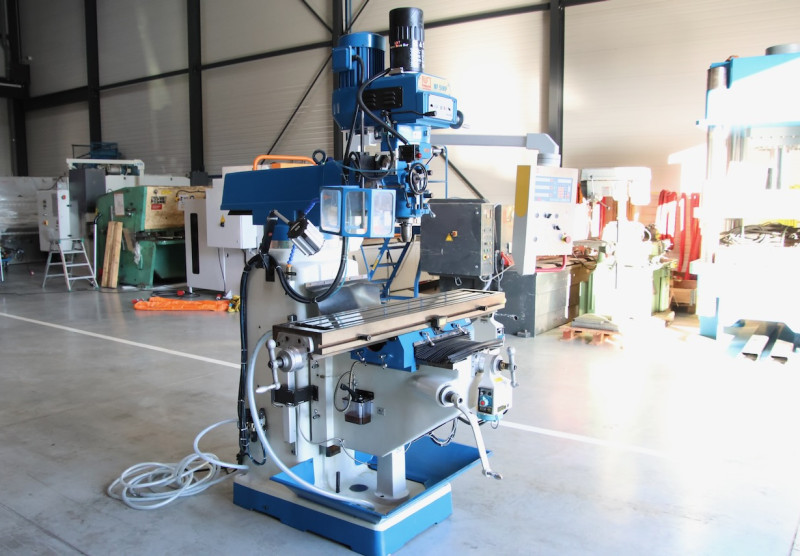

Used KNUTH MF 5 VKP milling machine
Data sheet
Technical specifications - MF 5 VKP - Multipurpose milling machine
work area
X-axis travel 800 mm
Y-axis travel 390 mm
Z-axis travel 380 mm

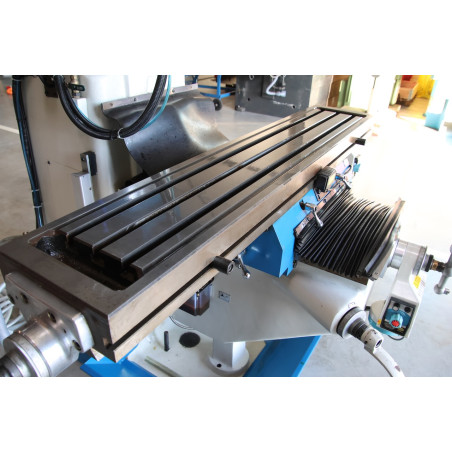

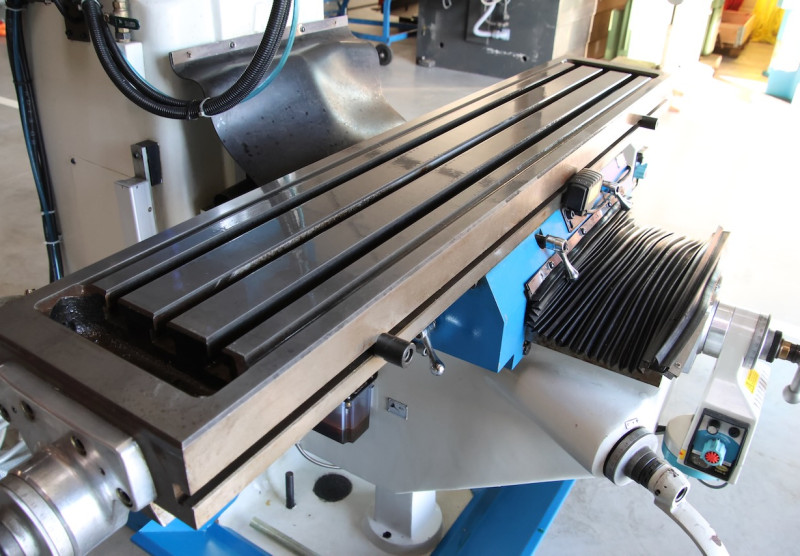

table installation surface 1370x250 mm
table load capacity (max.) 350 kg
Advance
sheath advances (3) 0.04; 0.08; 0.15 mm/R

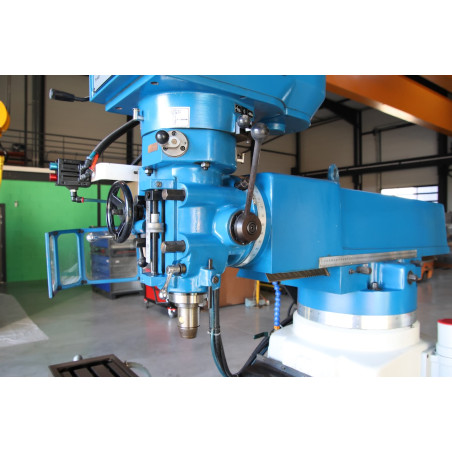

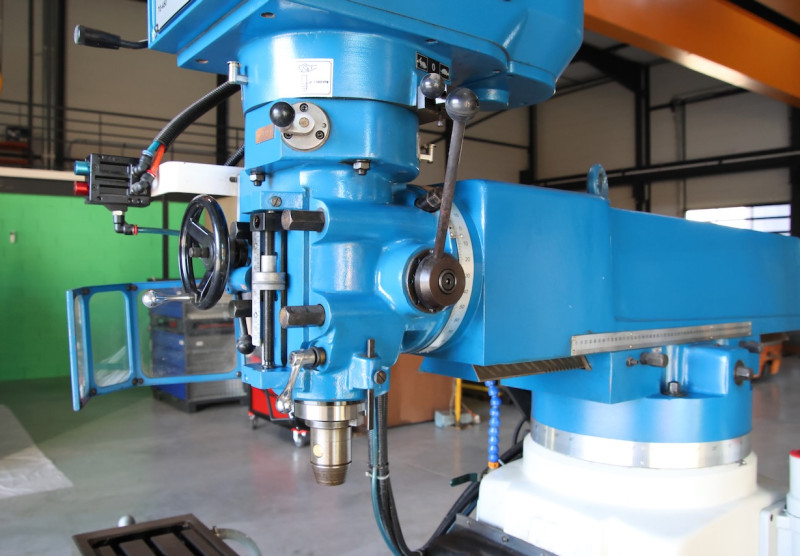

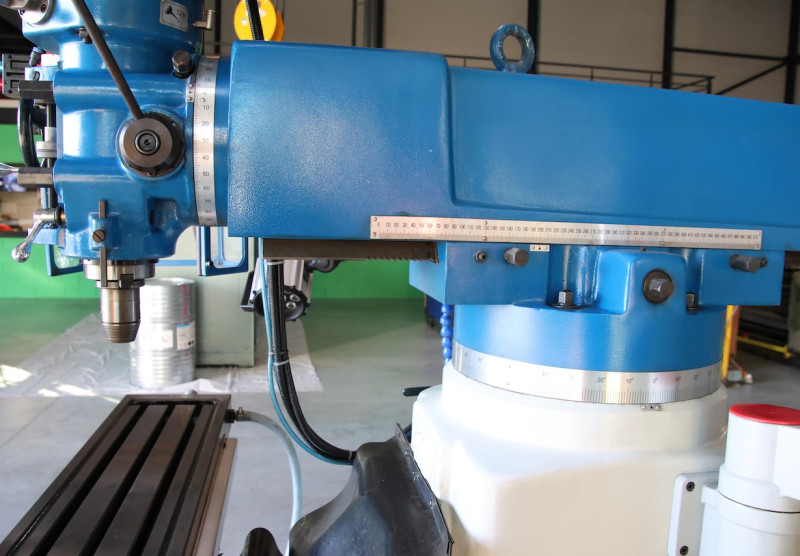

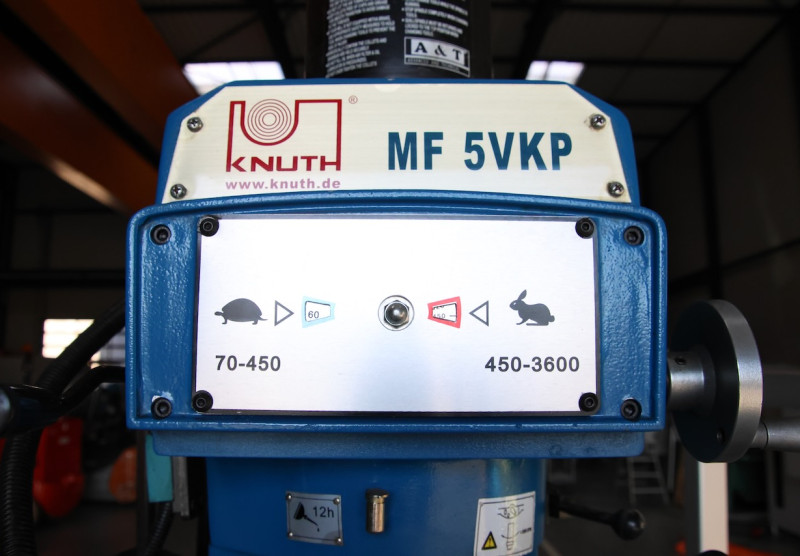

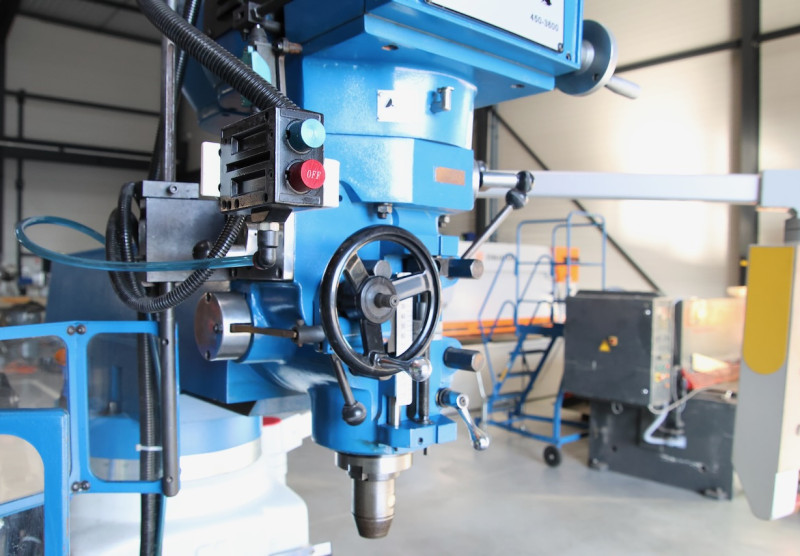

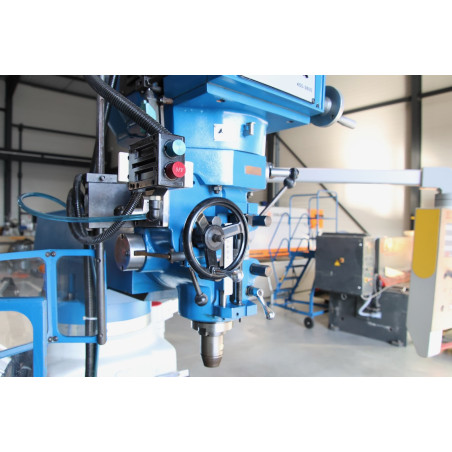

vertical milling head

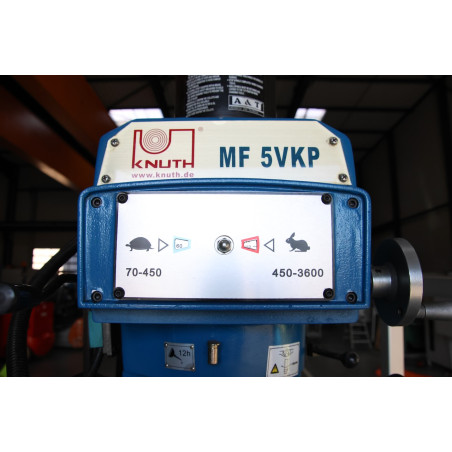

speed range 70 - 3600 rpm
ISO 40 spindle support
sheath stroke 127 mm
training capacity

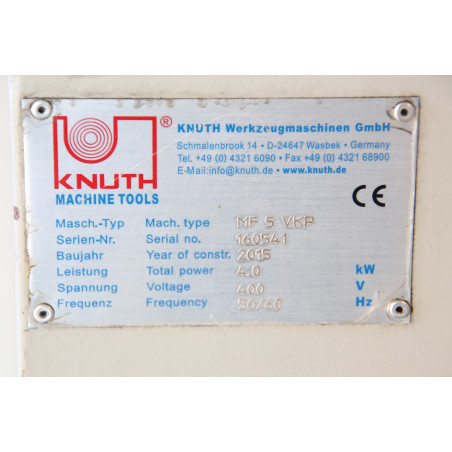

main engine power 3.75 kW
supply voltage 400 V
measures and weights
total dimensions 2540x2156x2235 mm
weight 1590 kg
Standard equipment - MF 5 VKP - Multipurpose milling machine

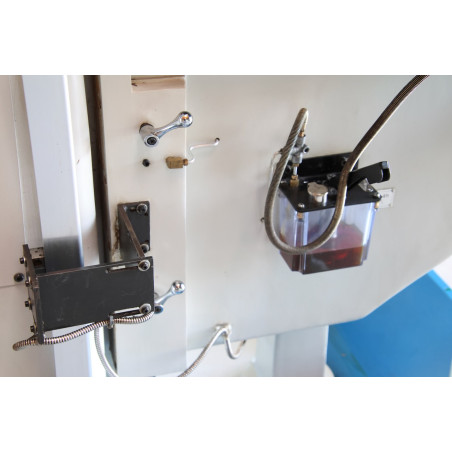

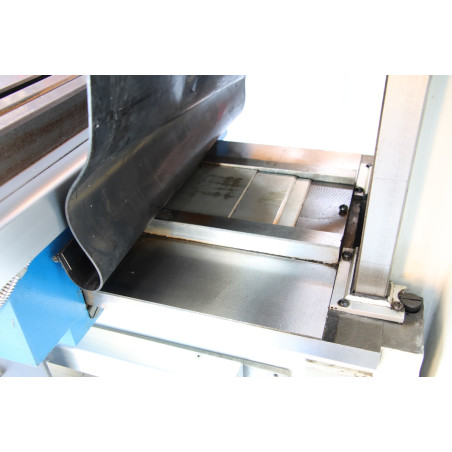

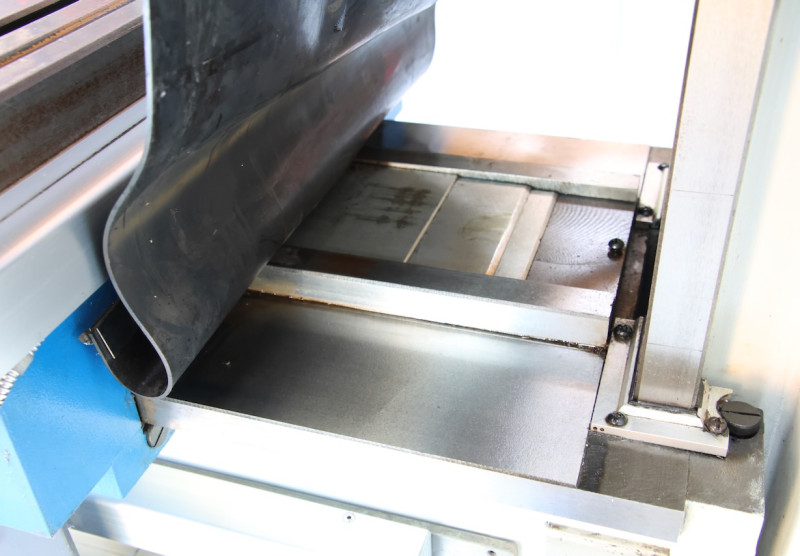

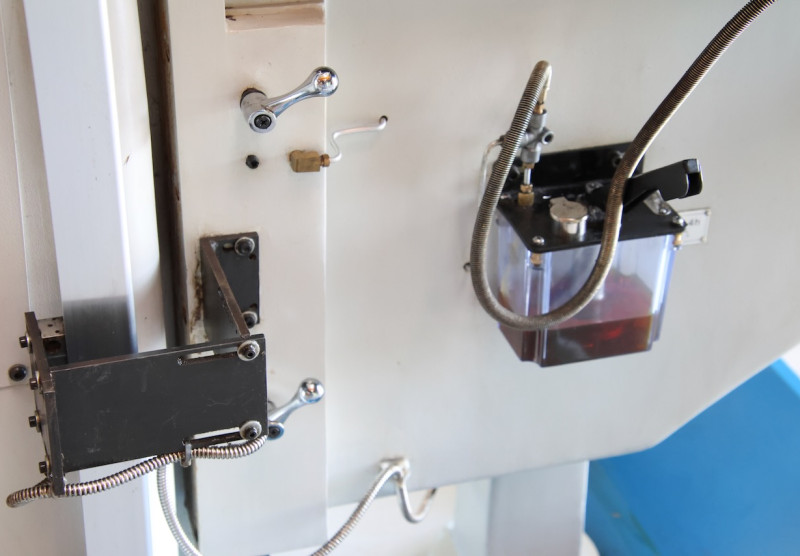

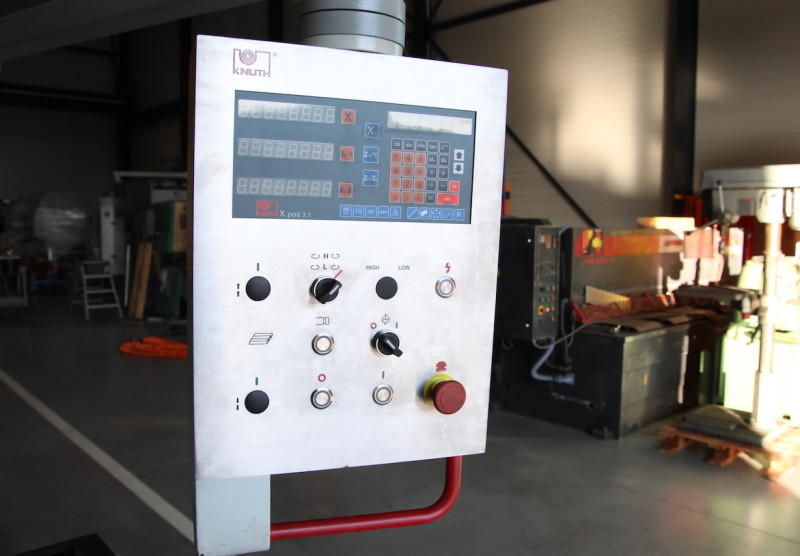

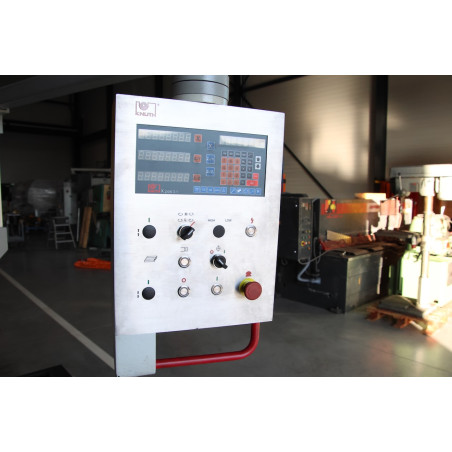

3-axis position indicator, preloaded ball screws in X and Y, pneumatic tool clamping, chip tray, cooling system, centralized lubrication, horizontal guide rail cover, work tools, user manual
Features
Please note: The information on this page has been obtained to the best of our ability and belief, and from manufacturers wherever possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not constitute a representation or constitute conditions of contract. We advise you to check all the vital details.
